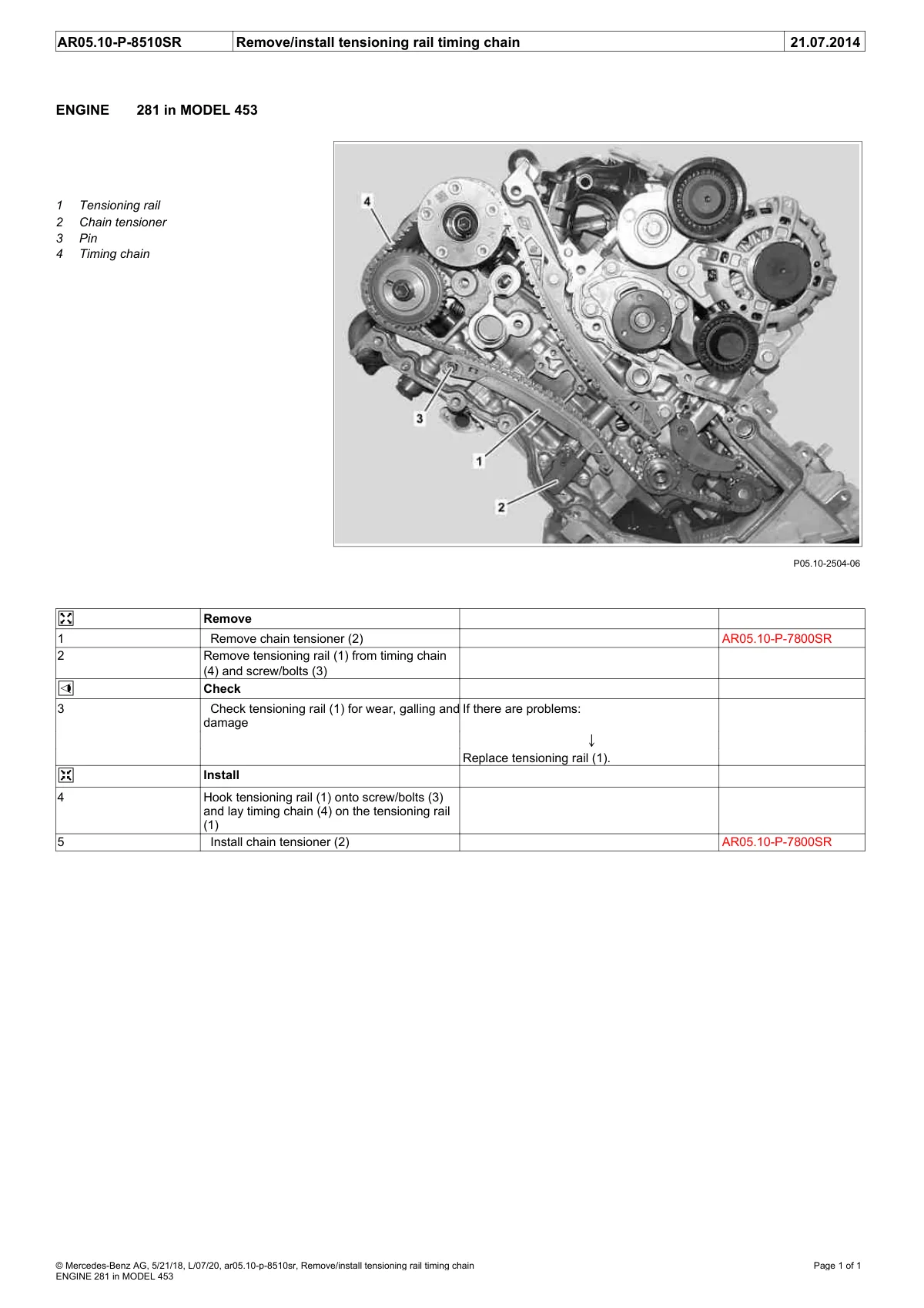

Remove/install tensioning rail timing chain on 281 engine in model 453 smart fortwo; exploded view with numbered callouts showing tensioner, rail, pin, and chain locations.

Engine timing chain assembly diagram with four numbered components and removal/installation procedure table.
