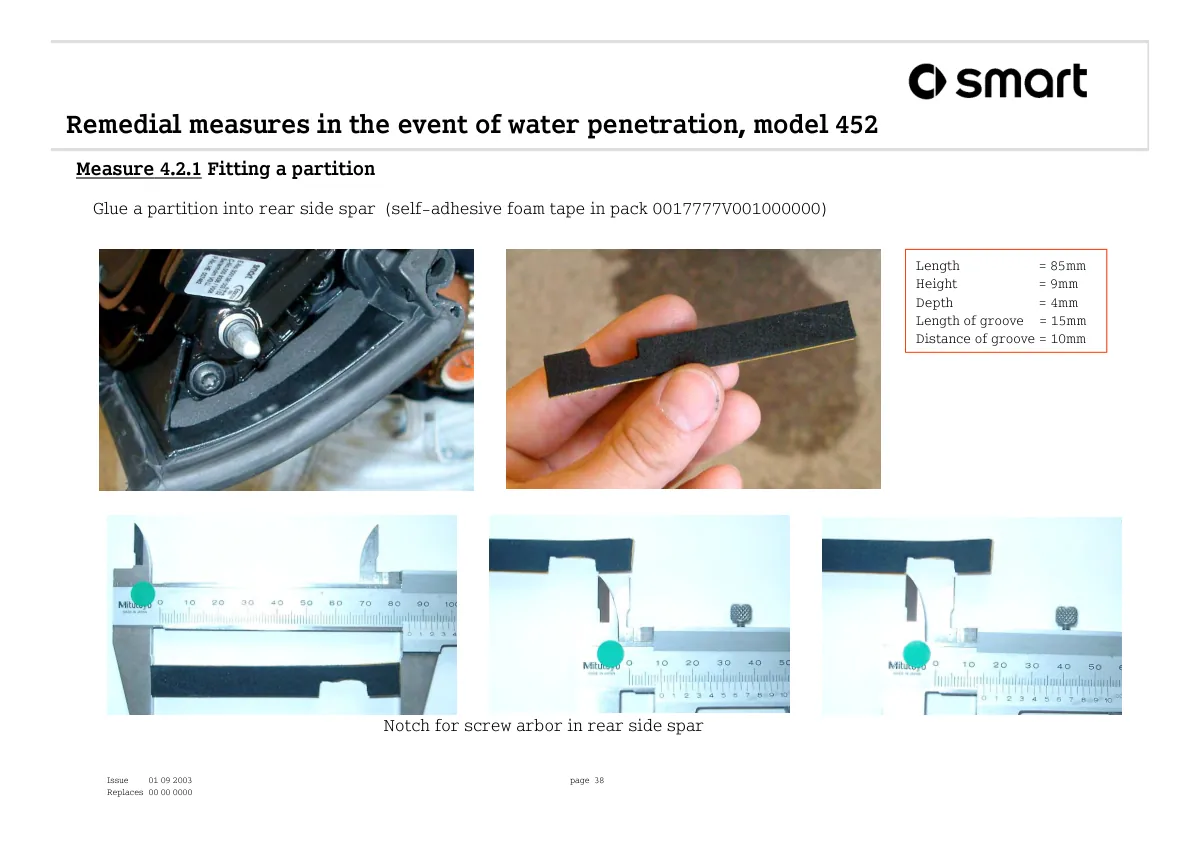

Model 452 water penetration remedy: fitting self-adhesive foam tape partition into rear side spar with dimensional specifications and installation details.

Four photos showing foam tape partition installation with measurements: 85mm length, 9mm height, 4mm depth, 15mm groove length, 10mm groove distance.
