Heater housing components identification with numbered callouts showing blower motor, heat exchanger, connectors, and assembly parts.

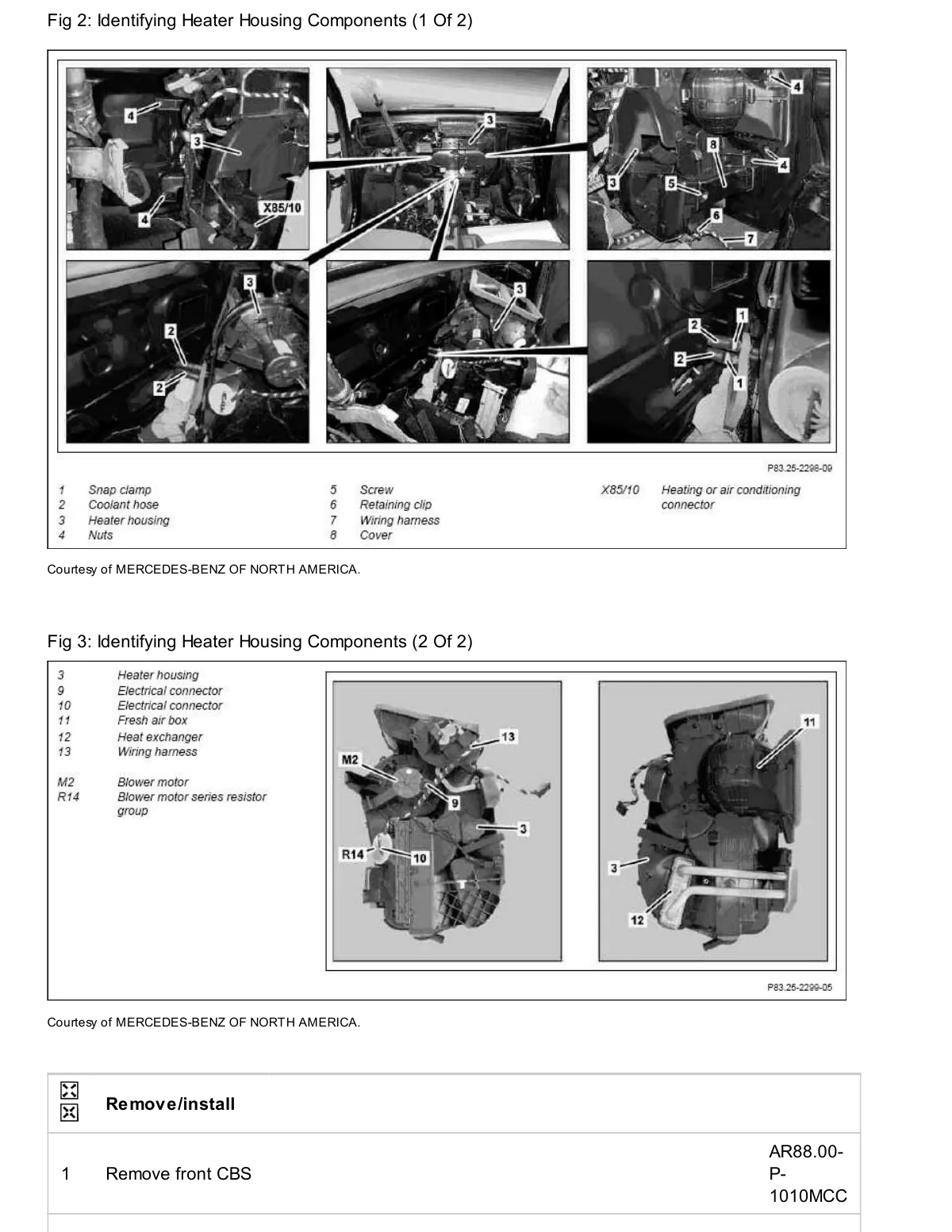

Six detailed photographs of heater housing assembly with numbered labels identifying components like snap clamps, coolant hoses, and electrical connectors.
