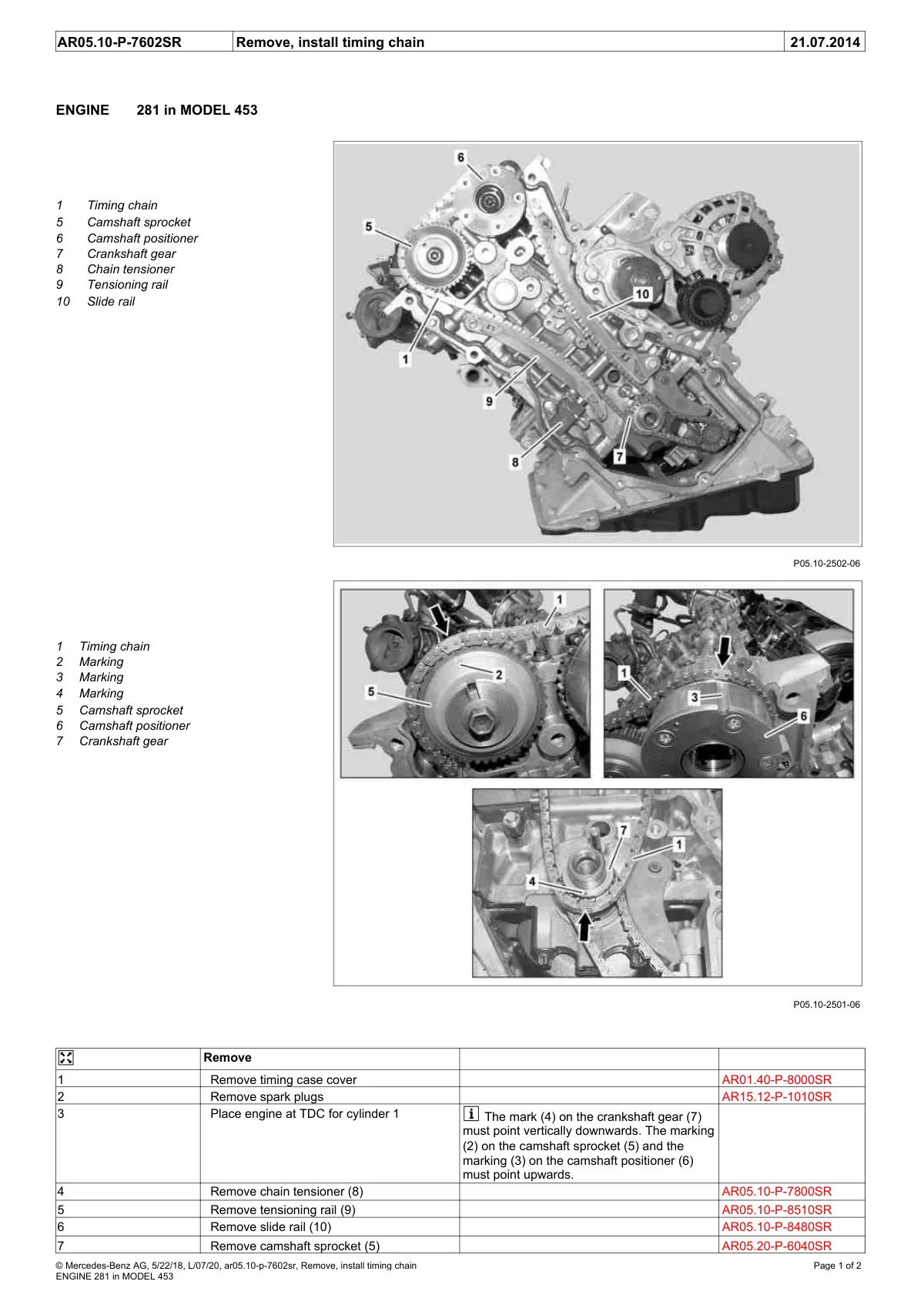

Timing chain removal and installation procedure for 281 engine in Smart Fortwo 453 with numbered callouts and exploded views.

Engine timing chain assembly diagram with labeled components and step-by-step removal instructions.
