Brake handle adjustment procedures for rear and front wheel brakes on smart ebike, with torque specifications and safety warnings.

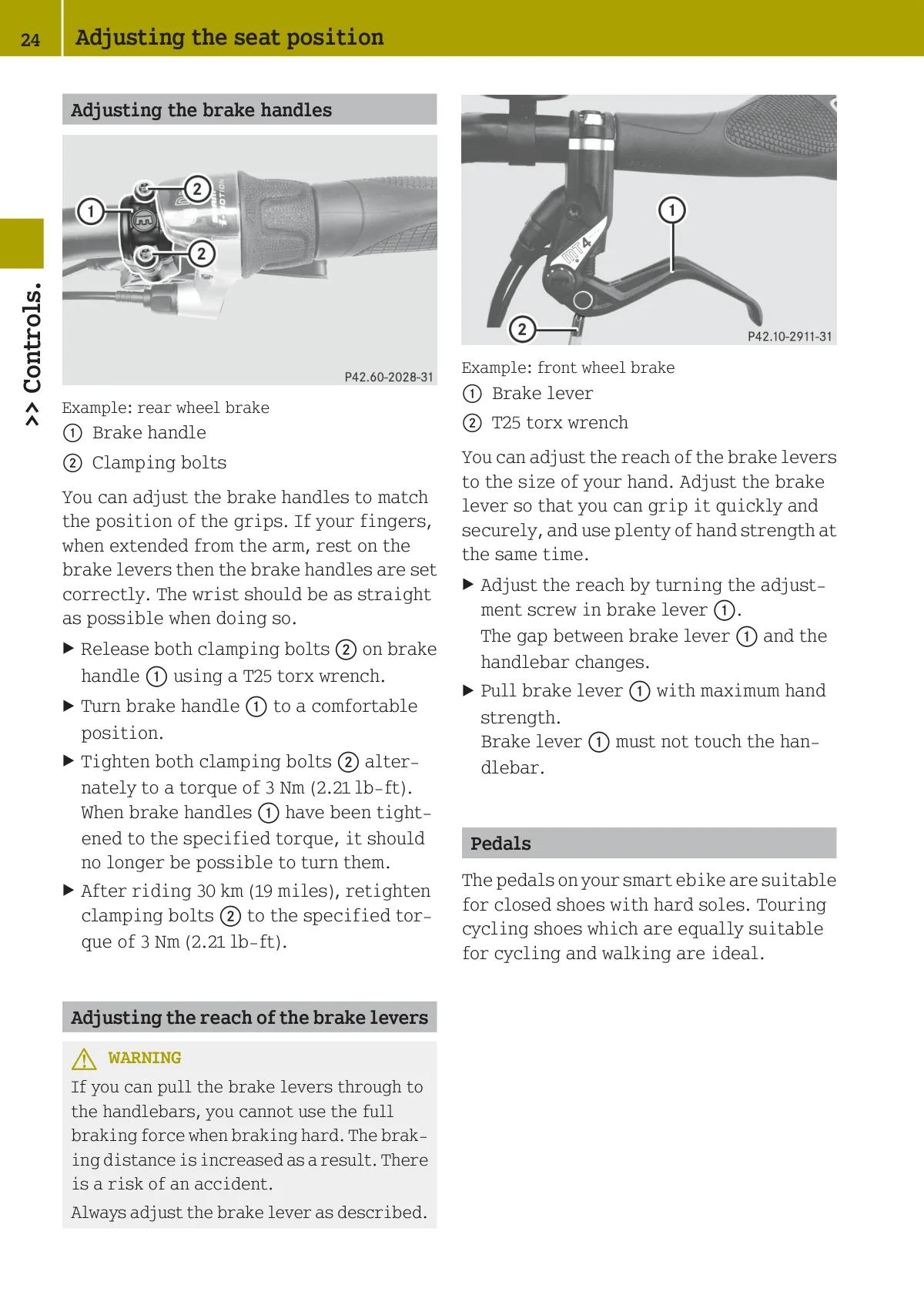

Numbered callouts showing brake handle clamping bolts, brake levers, and T25 torx wrench positions for rear and front brakes.
