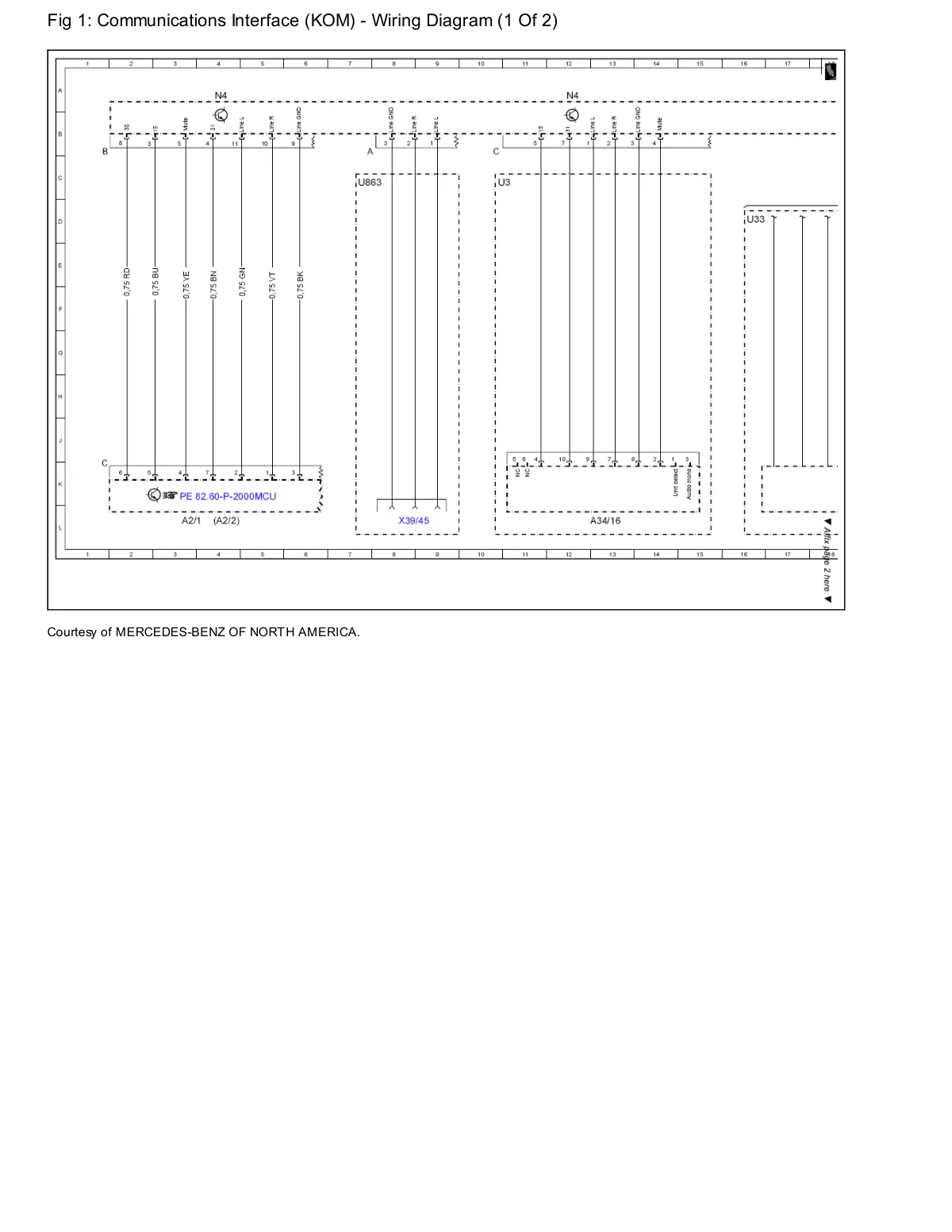

Communications Interface KOM wiring diagram part 1 of 2, showing signal routing and connector pinouts.

Wiring diagram for KOM communications interface module with multiple connector blocks and wire routing paths.
