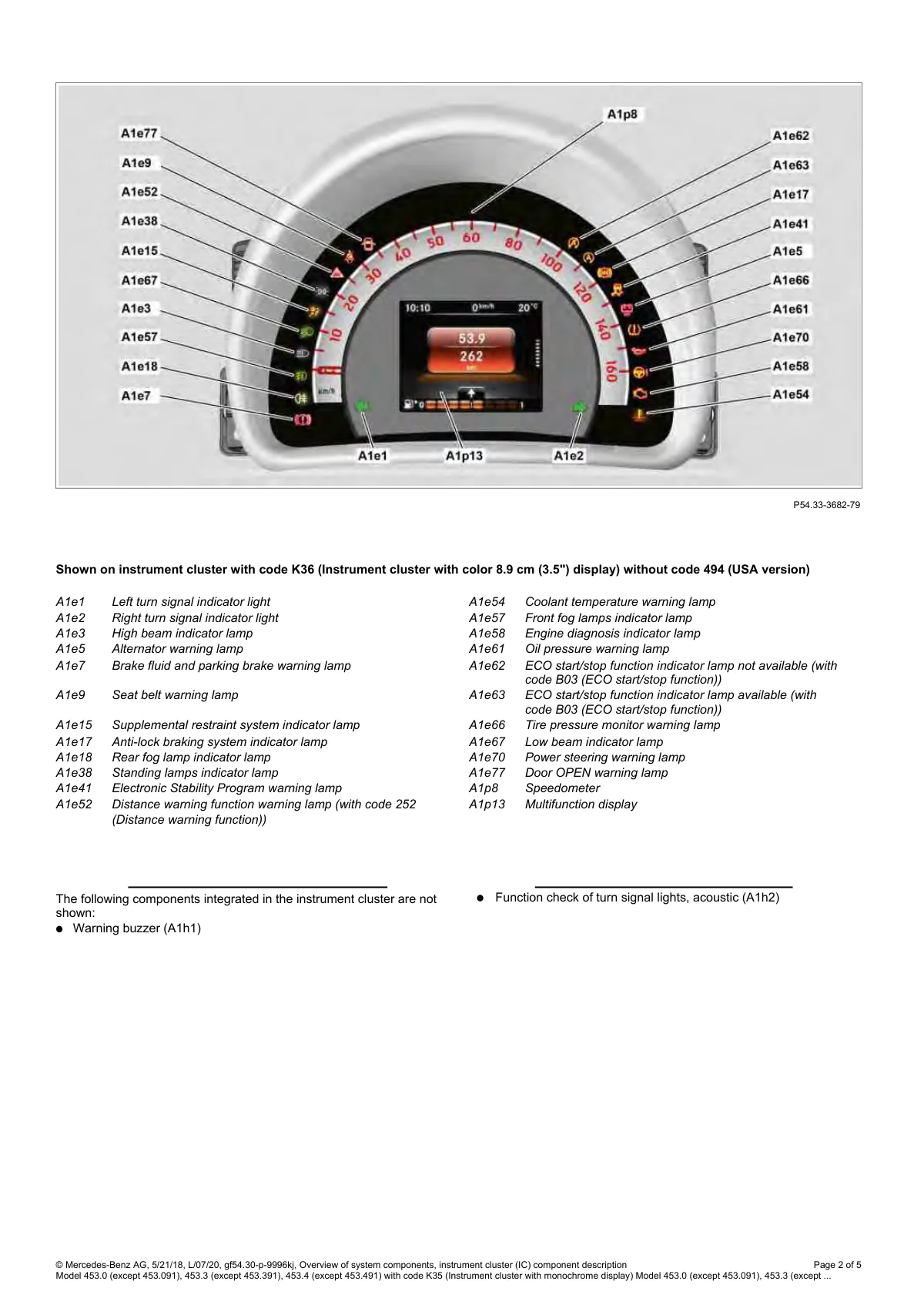

Instrument cluster callout diagram with labeled warning lights and display indicators, code K36 version without USA package.

Annotated speedometer and dashboard display showing 26 labeled indicator lights and functions around gauge perimeter.
