Solder joint identification and cable wrapping repair procedure for Smart Fortwo 451 wiring harness connections.

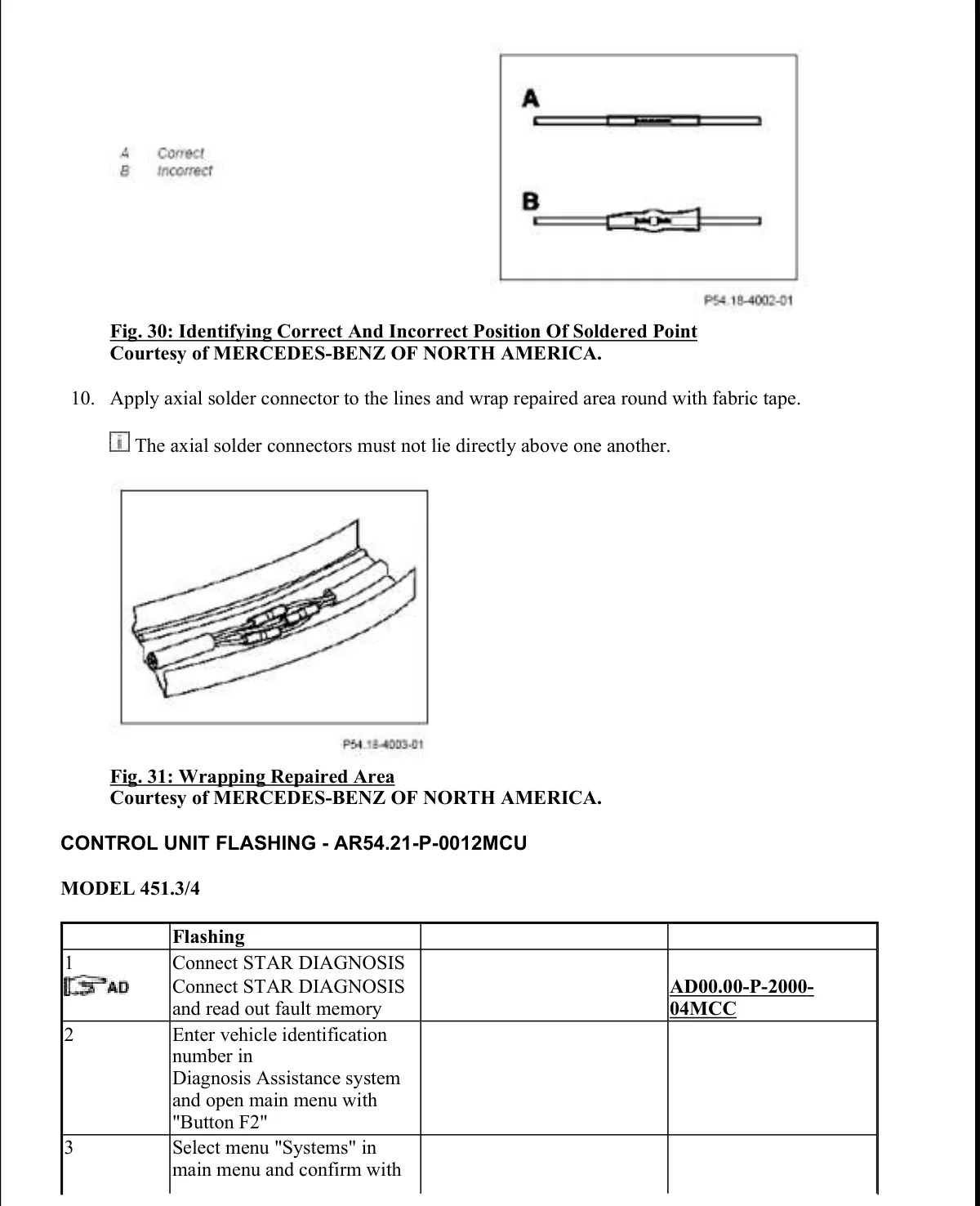

Diagram showing correct and incorrect solder joint positions, plus method for wrapping repaired cable area with fabric tape.
