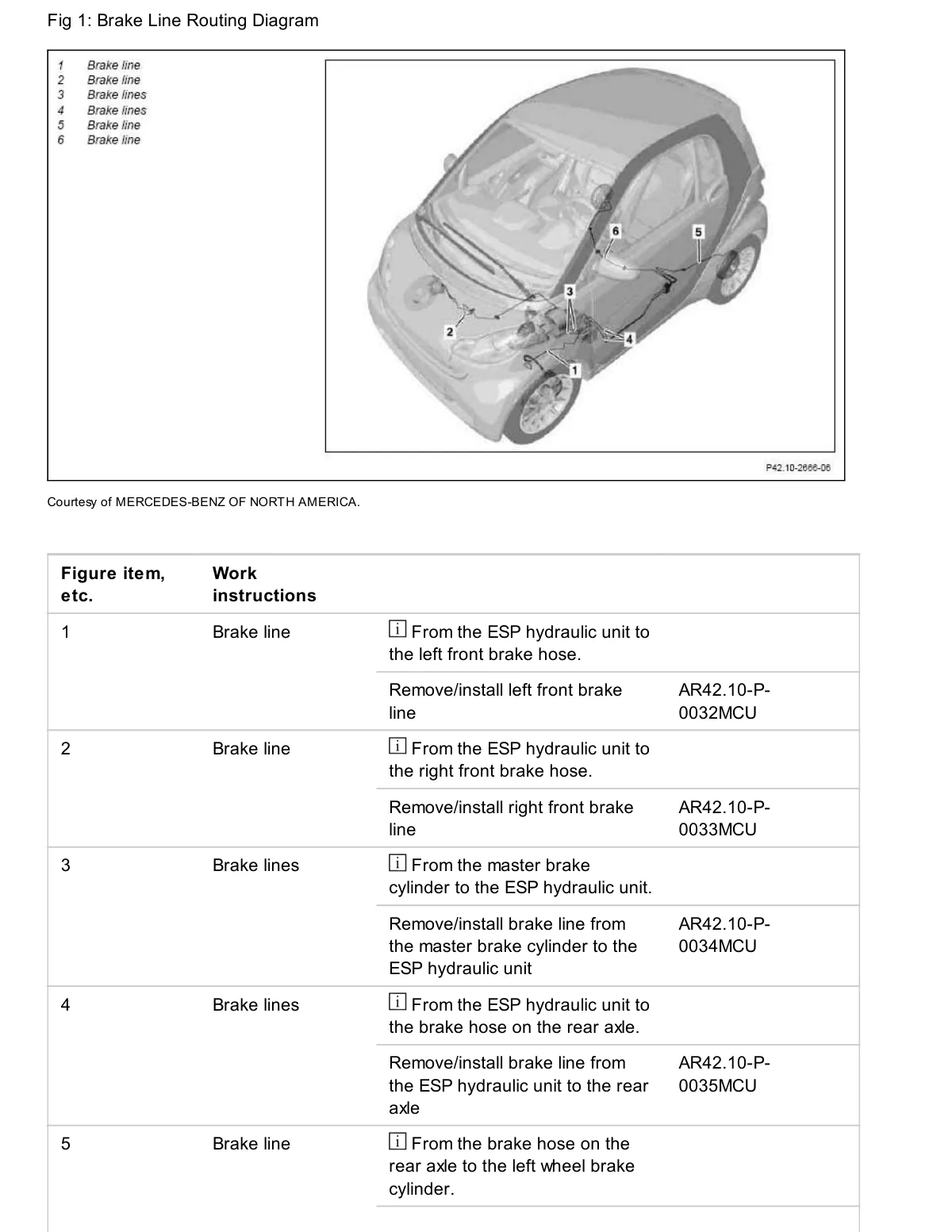

Brake line routing diagram for smart fortwo 450/451/452/454 showing ESP hydraulic unit connections to front and rear brakes.

Isometric view of smart car with six numbered brake lines labeled from ESP unit to wheel cylinders.
