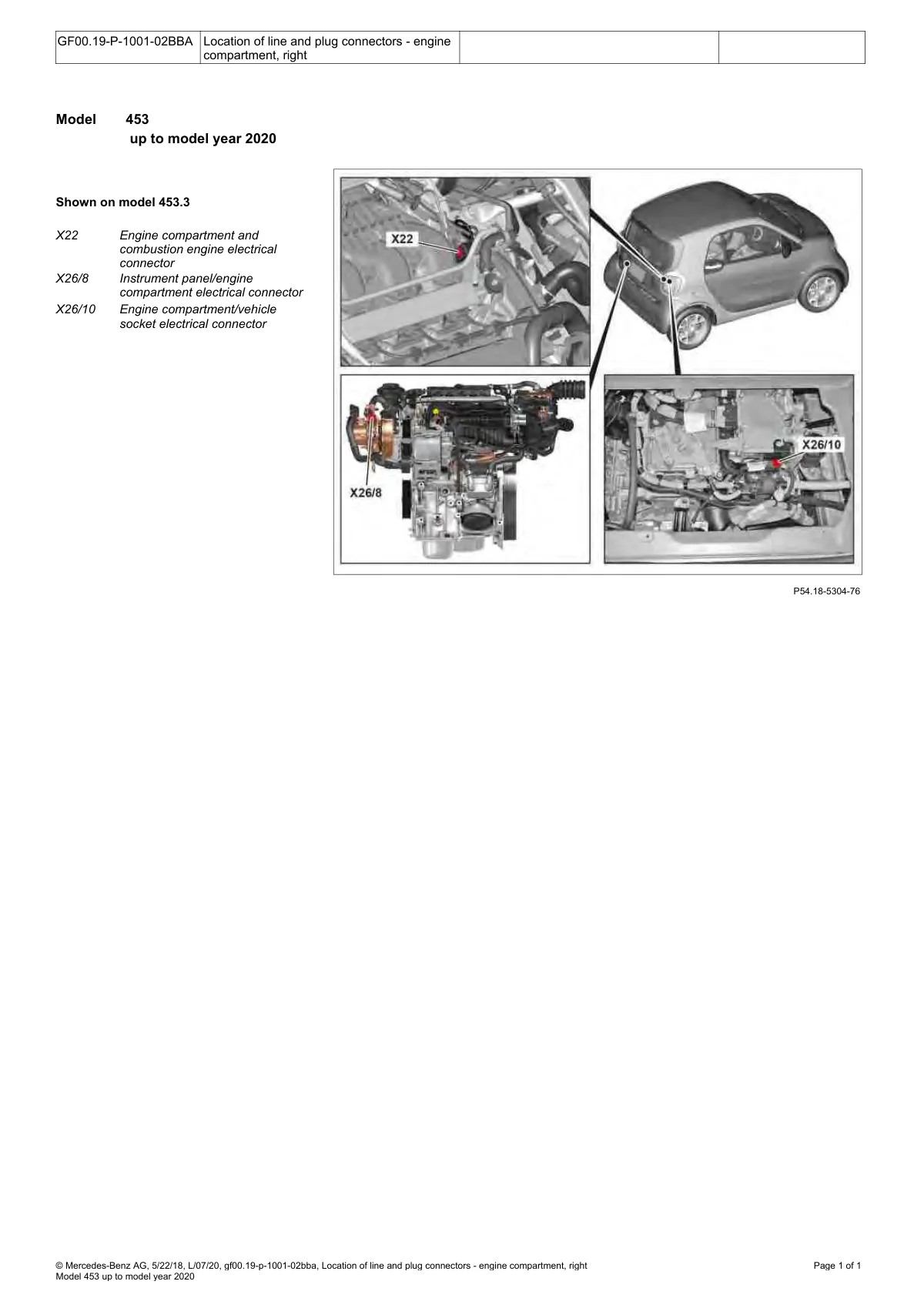

Chassis 453 engine compartment right side line and plug connector locations up to model year 2020.

Smart Fortwo 453 engine compartment electrical connectors X22, X26/8, X26/10 marked on right side views.
