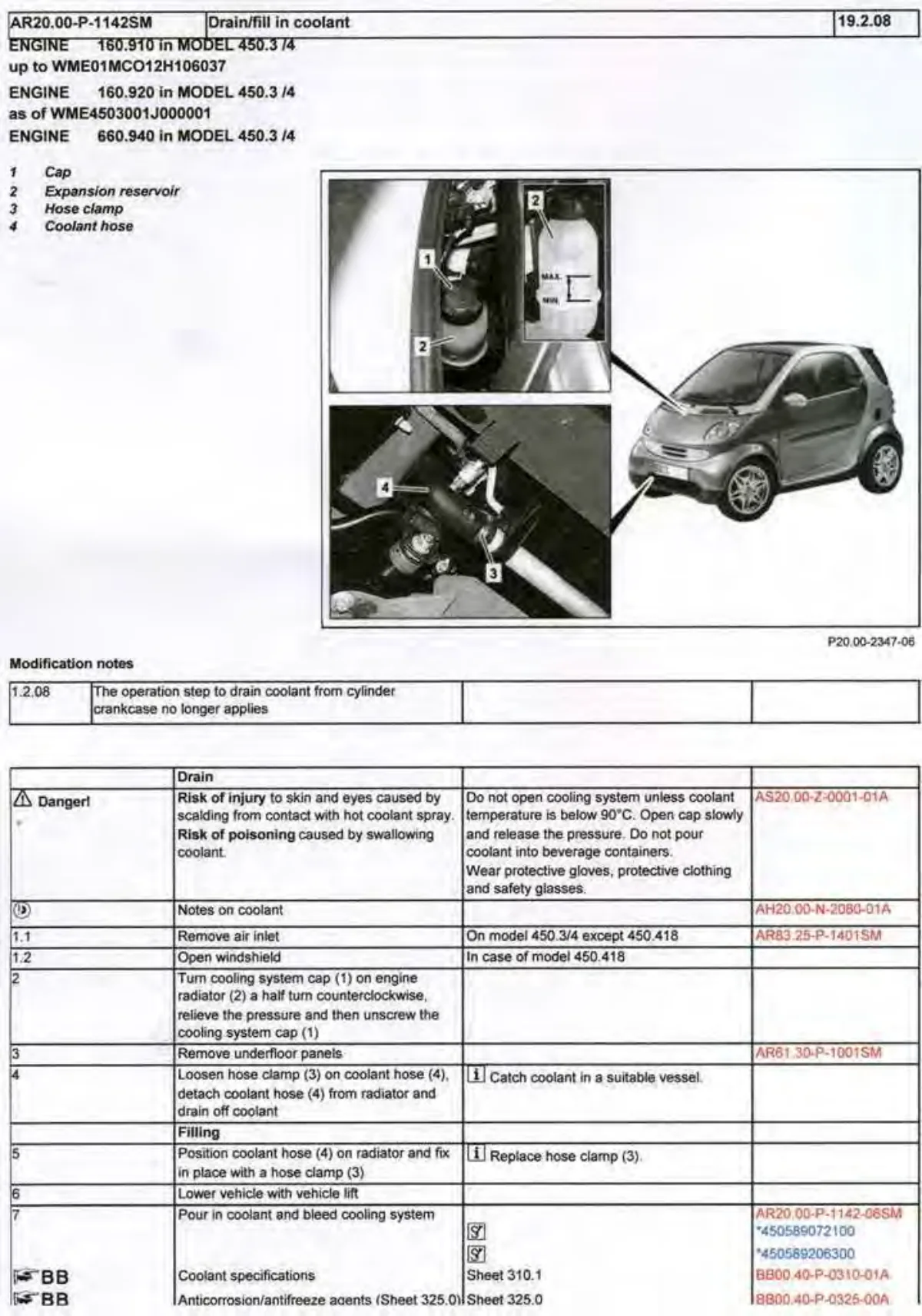

Coolant drain and fill procedure for smart fortwo 450 chassis engines 160.910, 160.920, 660.940 with numbered callouts and location photos.

Engine coolant drain/fill service procedure diagram with four numbered detail photos and component callouts for Model 450.

View full-size image ↗

See all Powertrain figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
