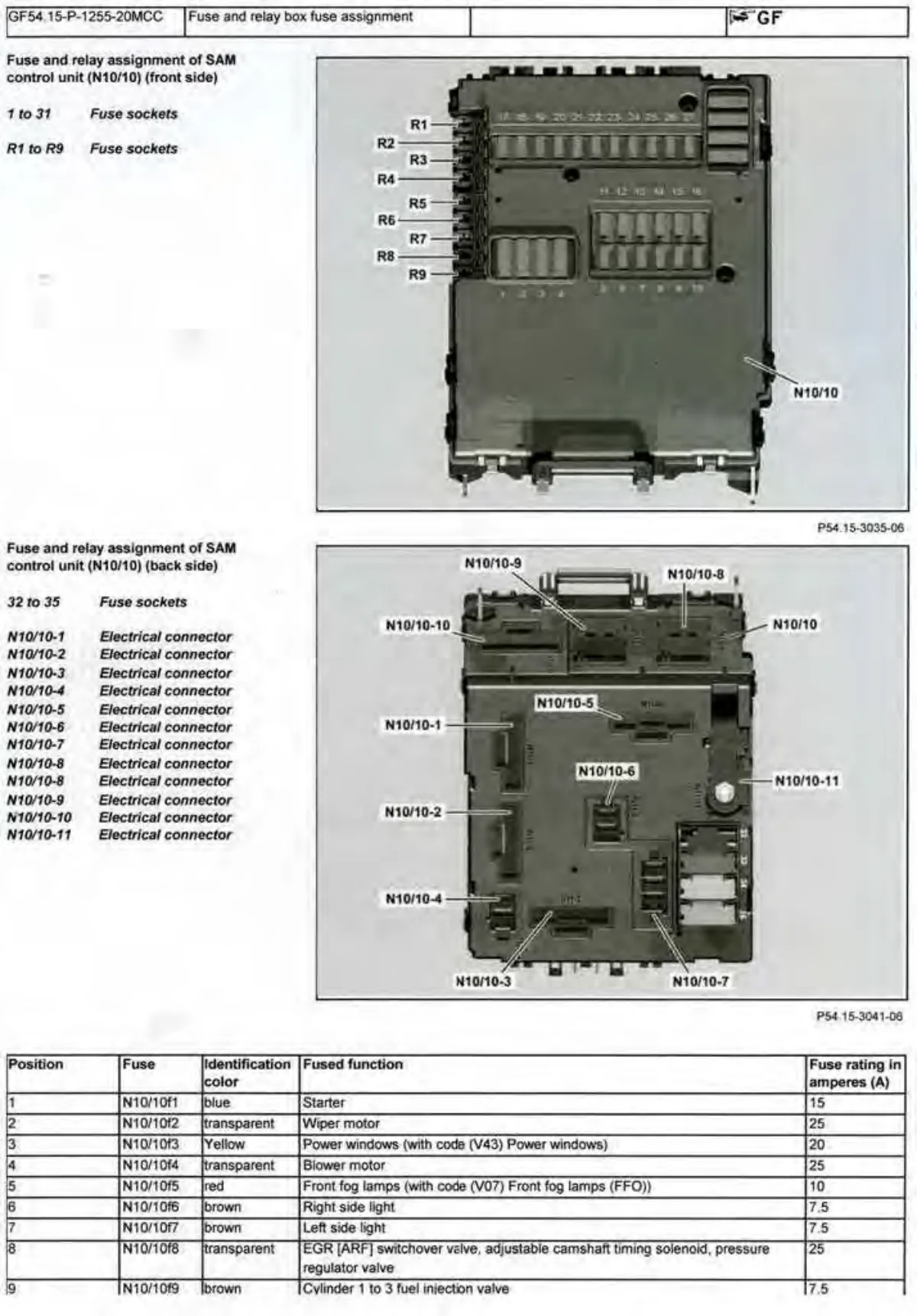

SAM control unit fuse and relay box assignment N10/10 front and back side with connector locations and fuse ratings.

Fuse box diagram showing fuse positions R1-R9 and electrical connectors N10/10-1 through N10/10-11 with fuse ratings table.
