Audio system equalizer settings and AUX input jack location for Smart radio10 head unit.

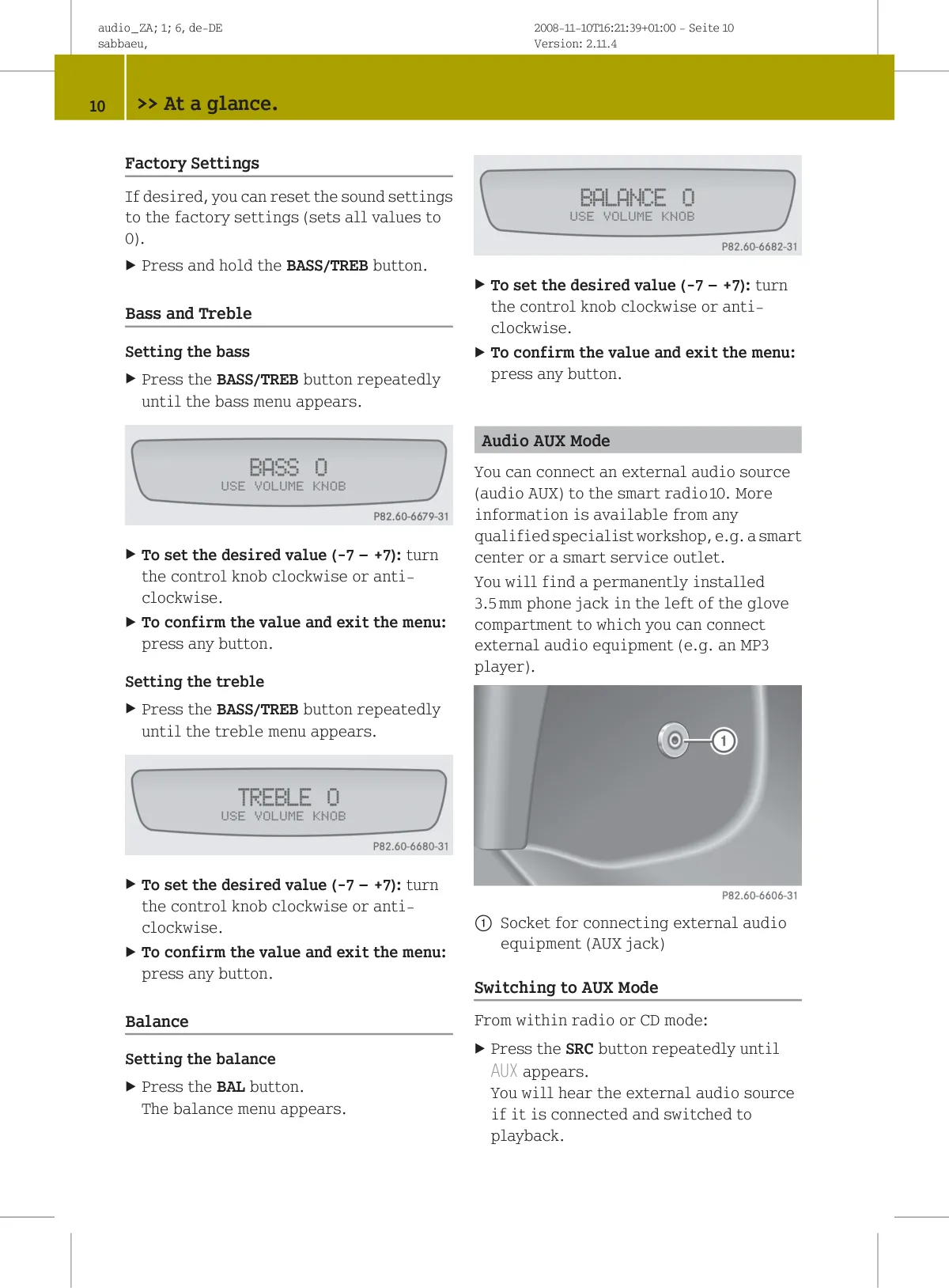

Radio display screens showing bass, treble, balance adjustments and 3.5mm aux jack in glove compartment.
