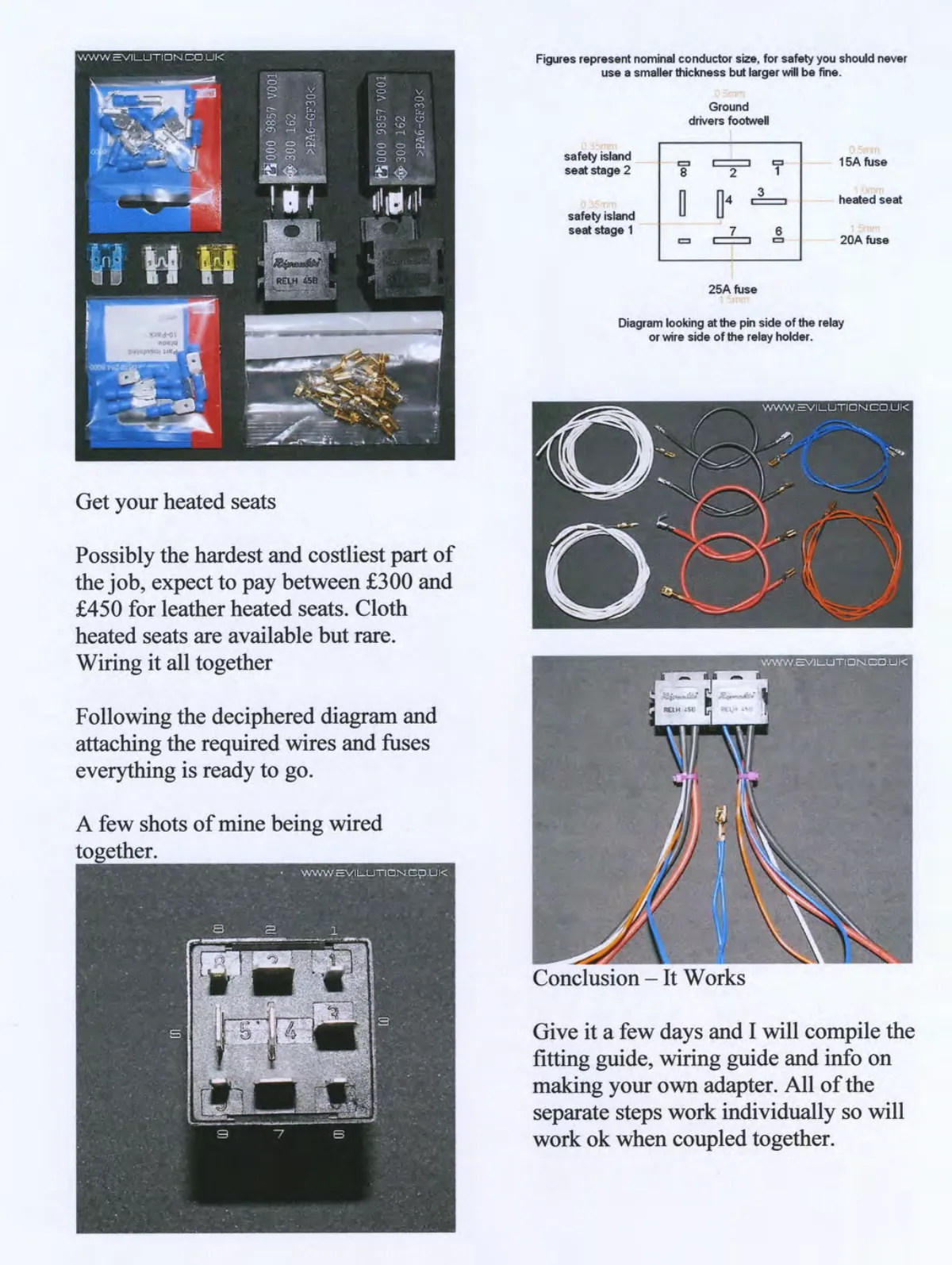

Heated seat installation guide showing relay diagram, fuse positions, wiring harnesses, and relay connections for Smart fortwo.

Heated seat wiring components including relays, fuses, colored cables, and relay pin diagram.
