Piston ring end gap positioning and piston ring types for 451 model 132.9 engine assembly.

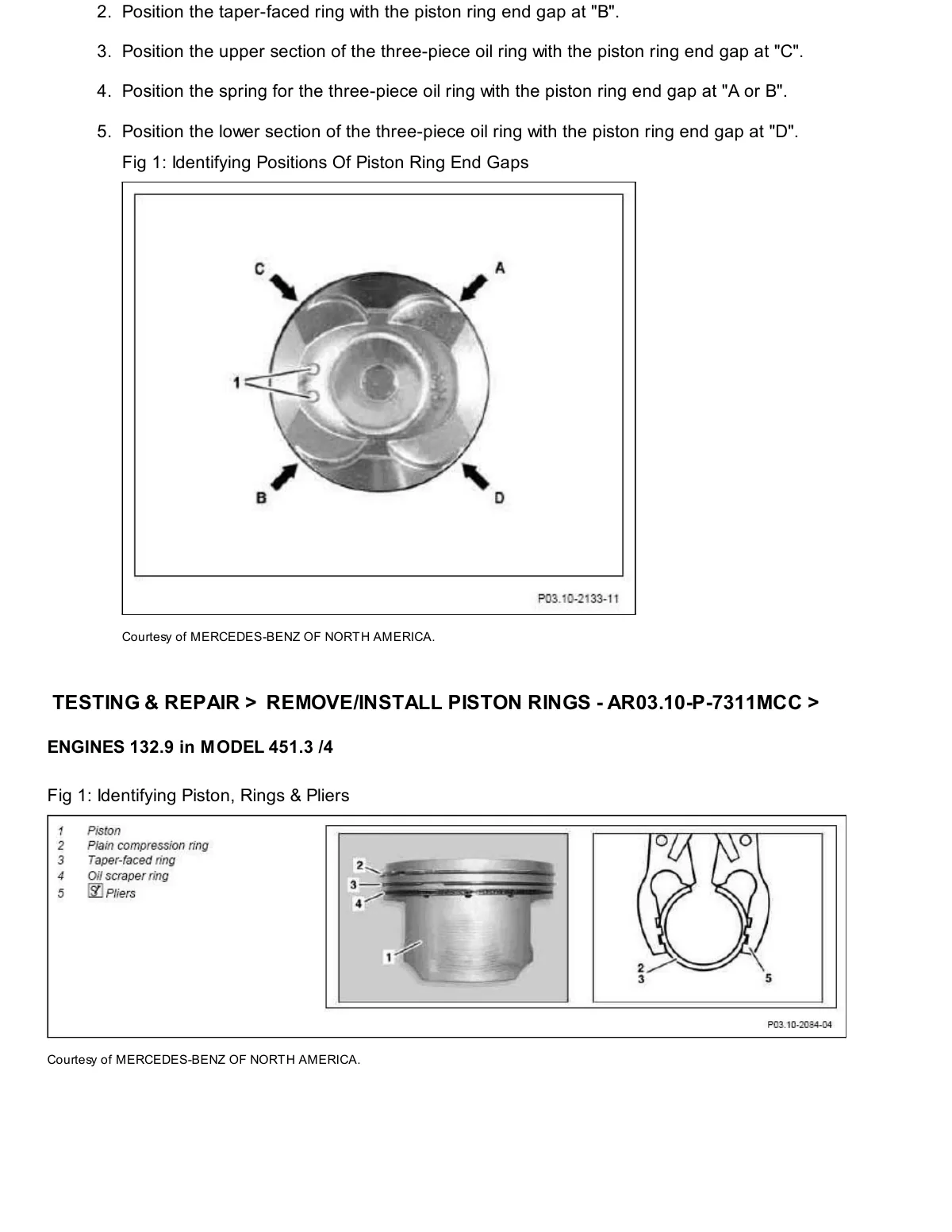

Diagram showing piston ring end gap positions A-D and cross-section of compression, taper, and oil scraper rings.
