Smart Roadster fuse panel layout with 35 fuses, amperage ratings, and color-coded wire assignments.

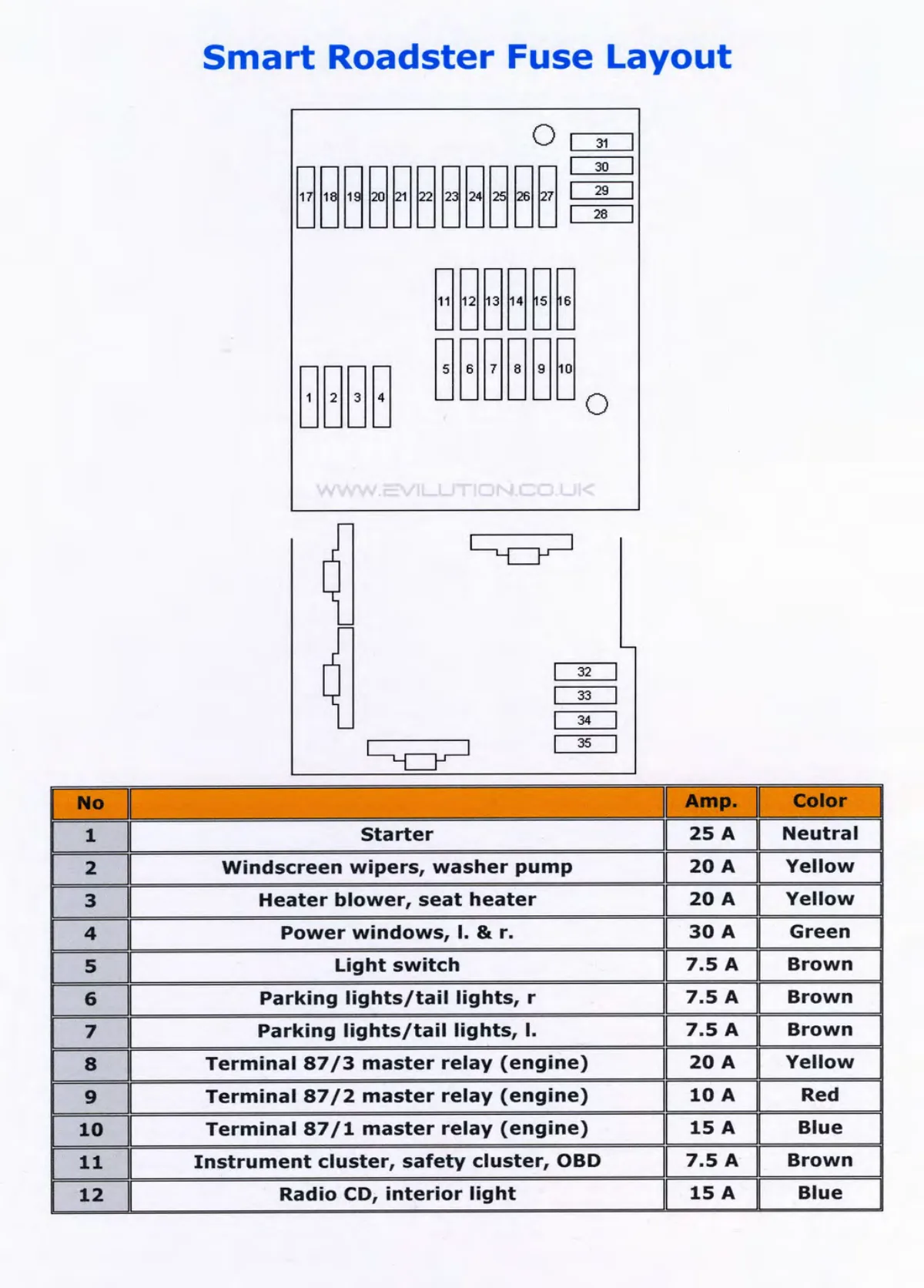

Fuse box diagram showing numbered fuse positions 1-35 and legend table with amperage and wire colors.
