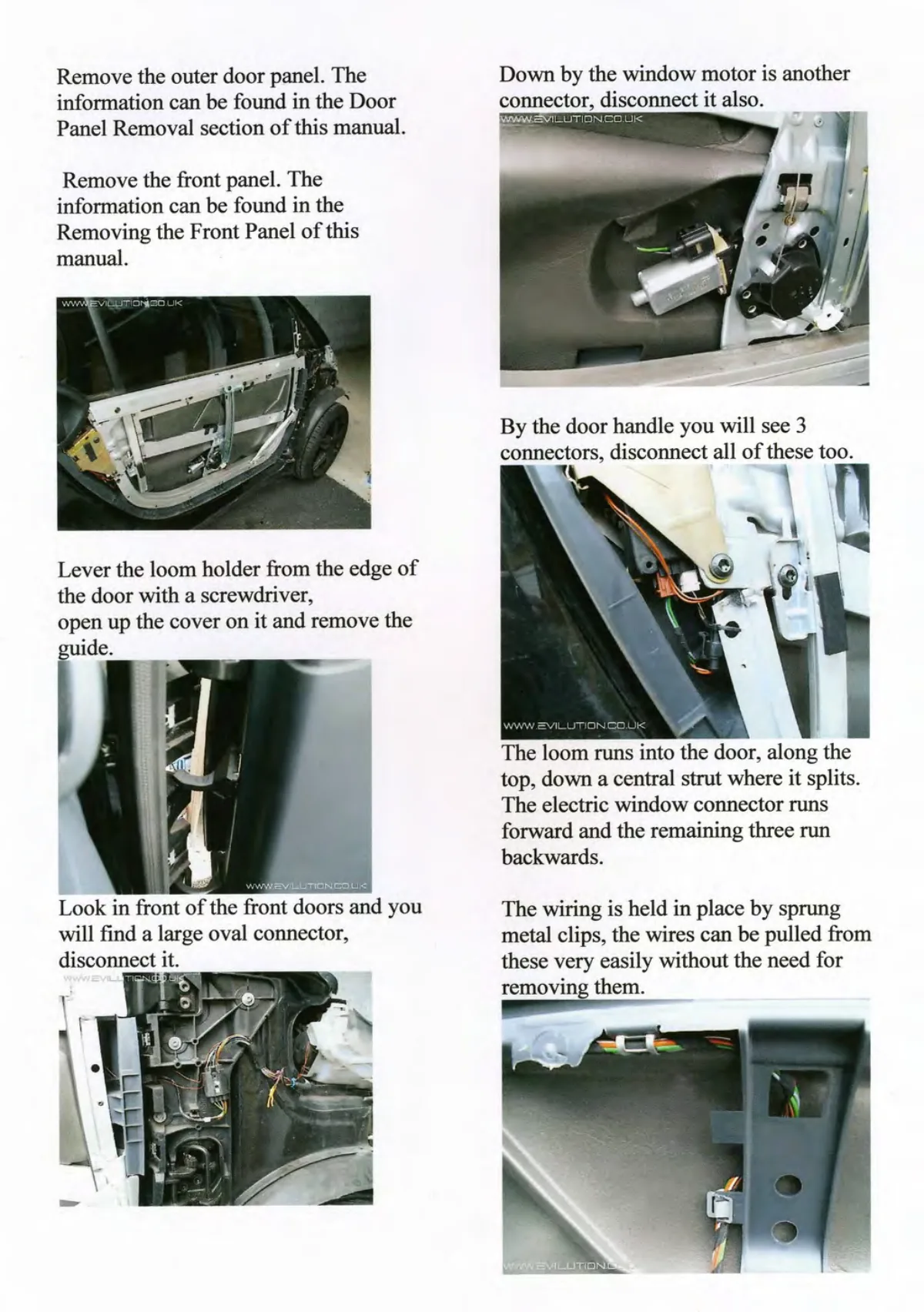

Door panel removal procedure showing outer panel, front panel, window motor connector, door handle connectors, and wiring loom routing for Smart Fortwo 450/451.

Service procedure images showing door disassembly steps including panel removal, electrical connectors, and wire routing.

View full-size image ↗

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
