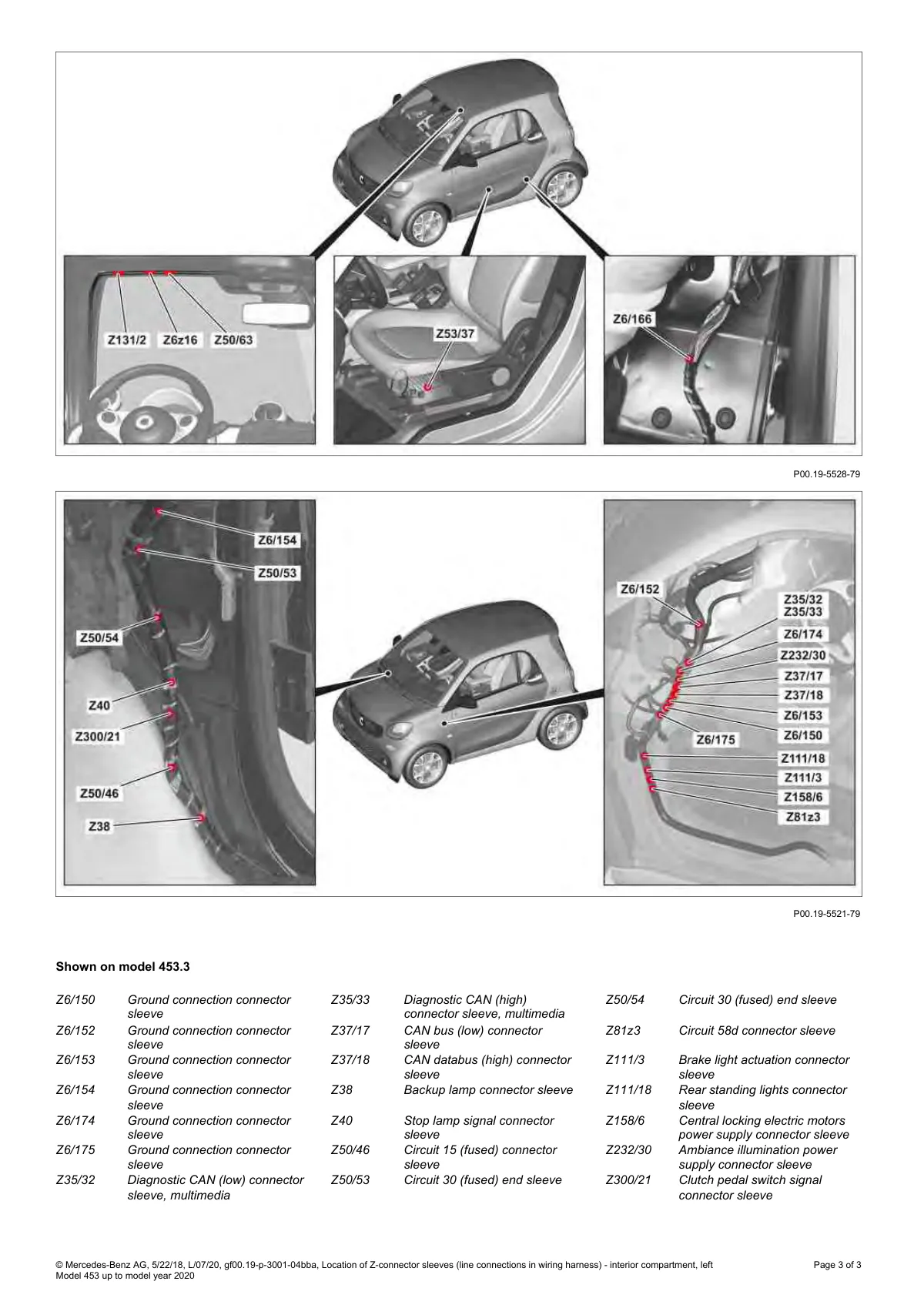

Location of Z-connector sleeves and electrical connectors throughout Smart Fortwo 453 interior compartment and wiring harness.

Diagram showing connector sleeve locations on Smart Fortwo 453 model with numbered callouts and part references.
