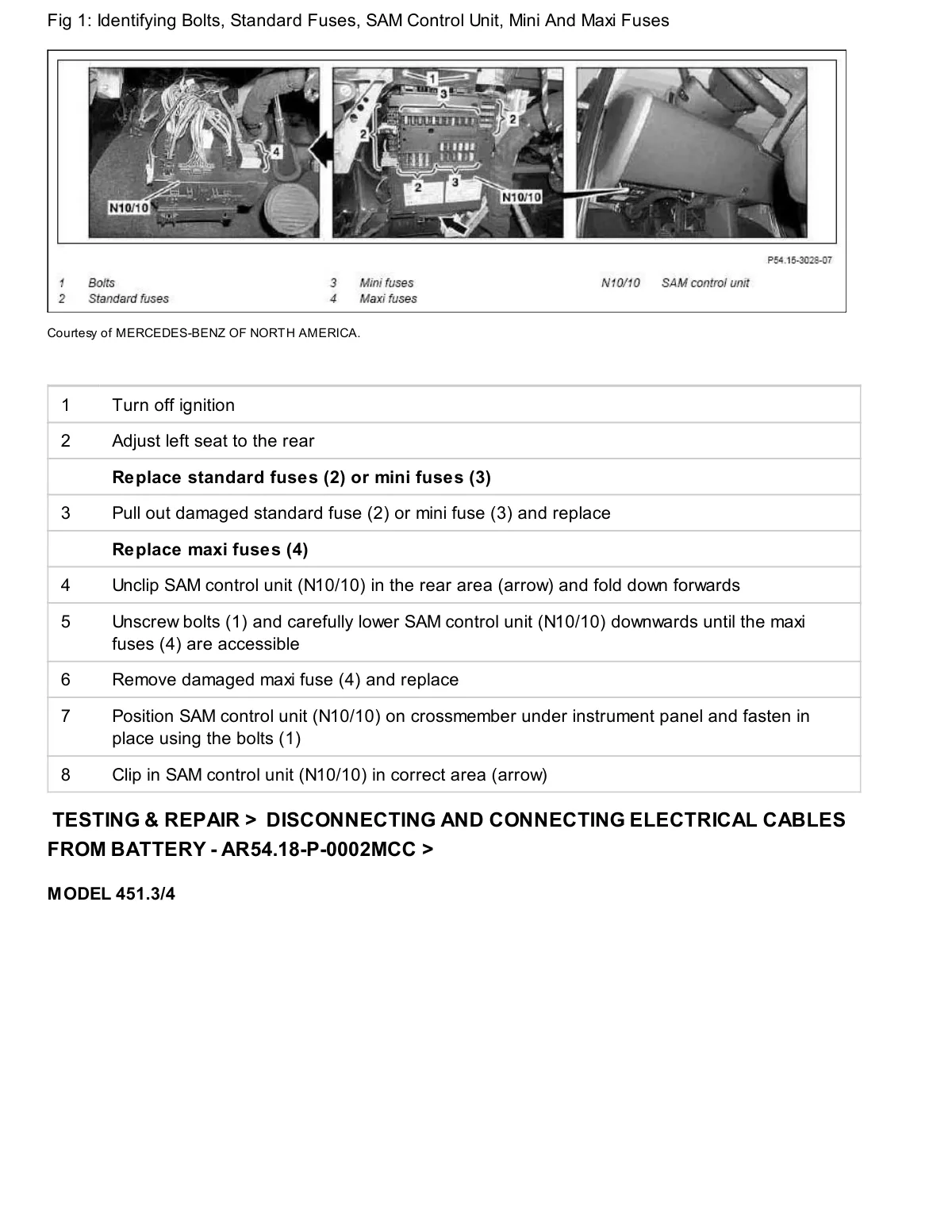

Identifying bolts, standard fuses, SAM control unit, mini and maxi fuses in smart 451 model with step-by-step replacement procedures.

Three photos showing bolt locations, fuse boxes, and SAM control unit N10/10 with numbered callouts and replacement instructions.
