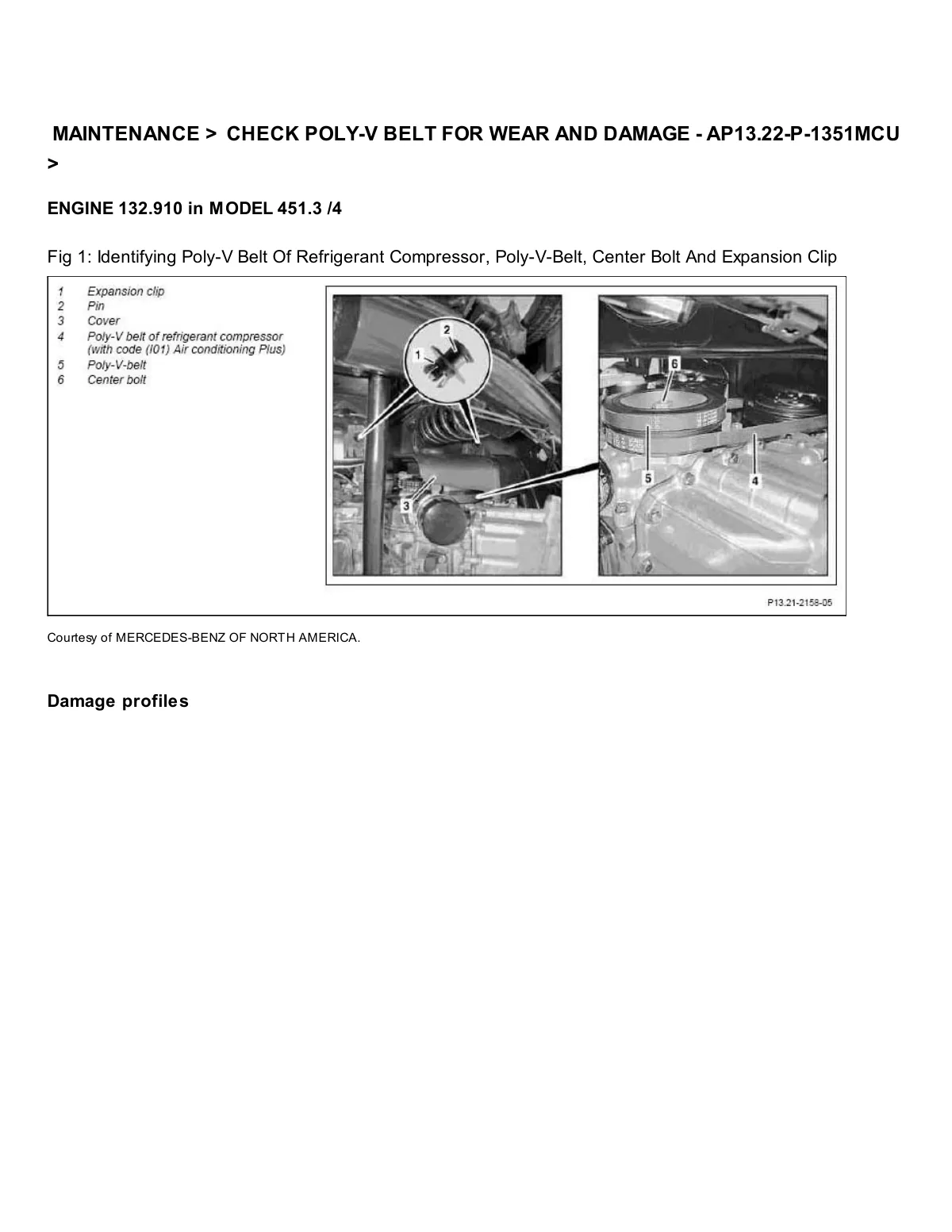

Poly-V belt routing and components on refrigerant compressor, engine 132.910 chassis 451.3/4 AC system.

Engine bay photo showing poly-V belt, expansion clip, center bolt, and refrigerant compressor pulley with numbered callouts.
