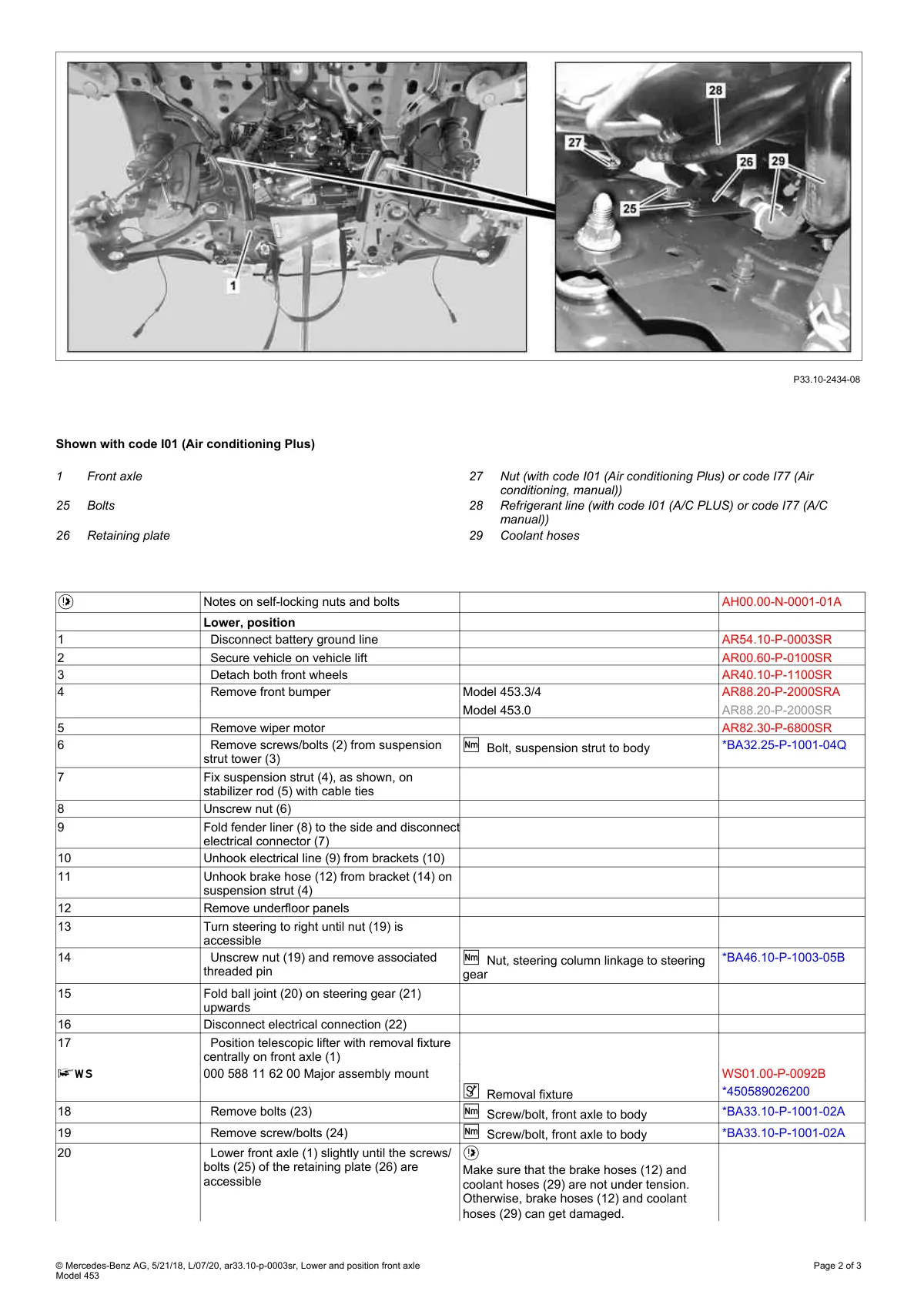

Front axle assembly with air conditioning components, callout reference for nuts, bolts, retaining plate, refrigerant line, and coolant hoses on Smart 453.

See all Chassis figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
