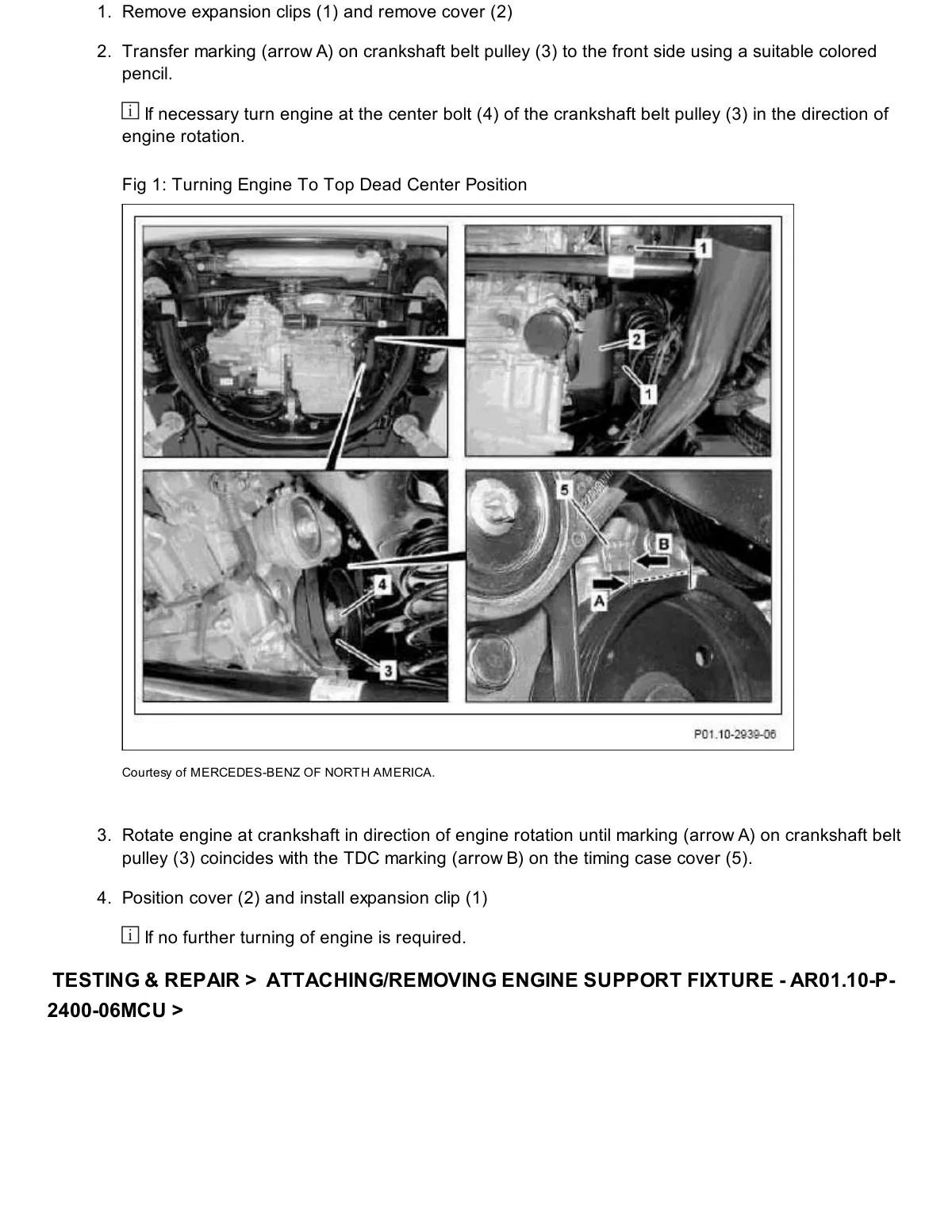

Crankshaft belt pulley marking alignment procedure for engine top dead center positioning on 450/451/452/454.

Four-part exploded view showing expansion clips, cover removal, pulley marking transfer, and TDC alignment marks.
