Alcohol lock electrical connection interface and energy regenerative braking system operation for Smart EV models.

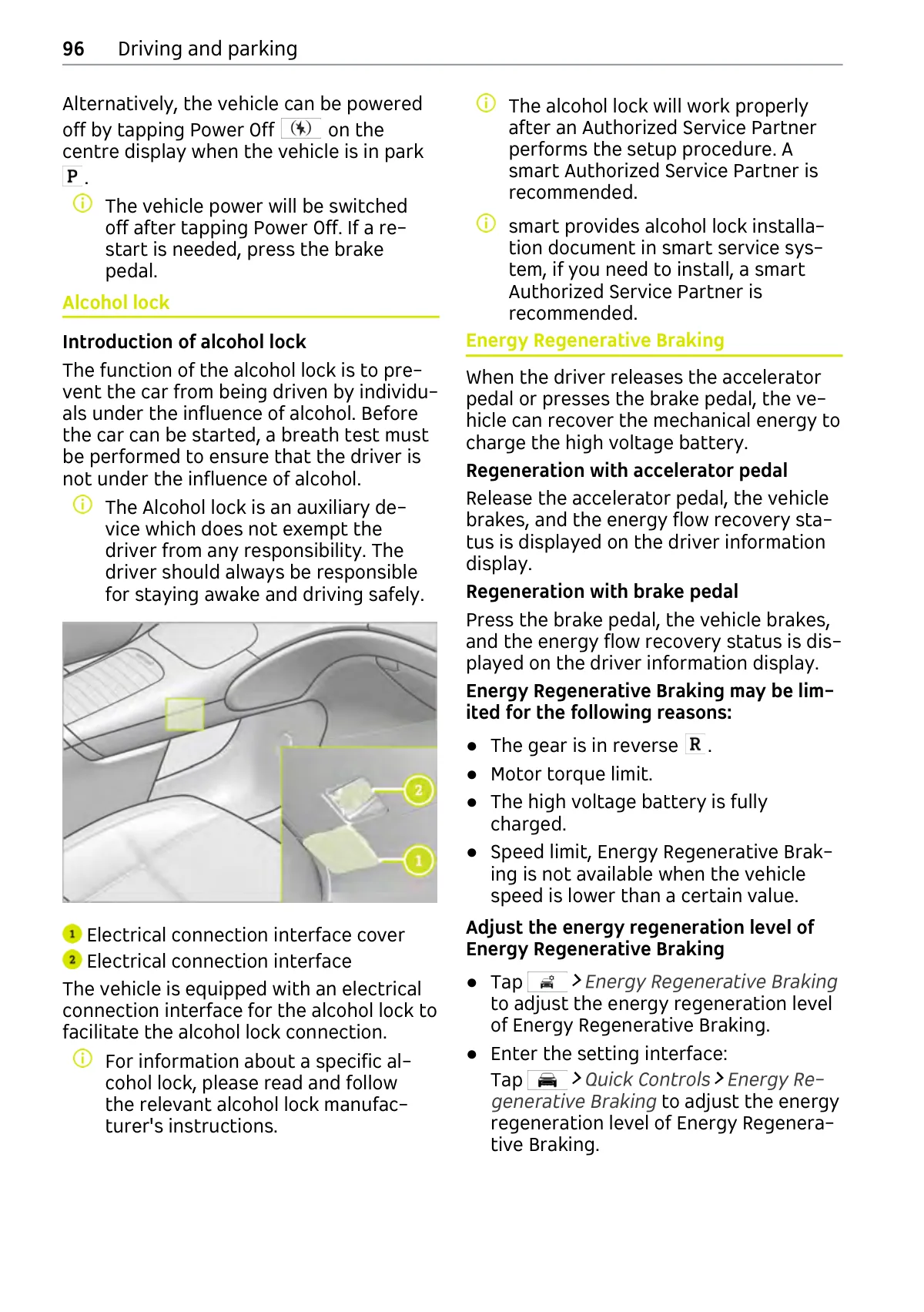

Manual page showing alcohol lock connector location and regenerative braking procedures with numbered callouts.
