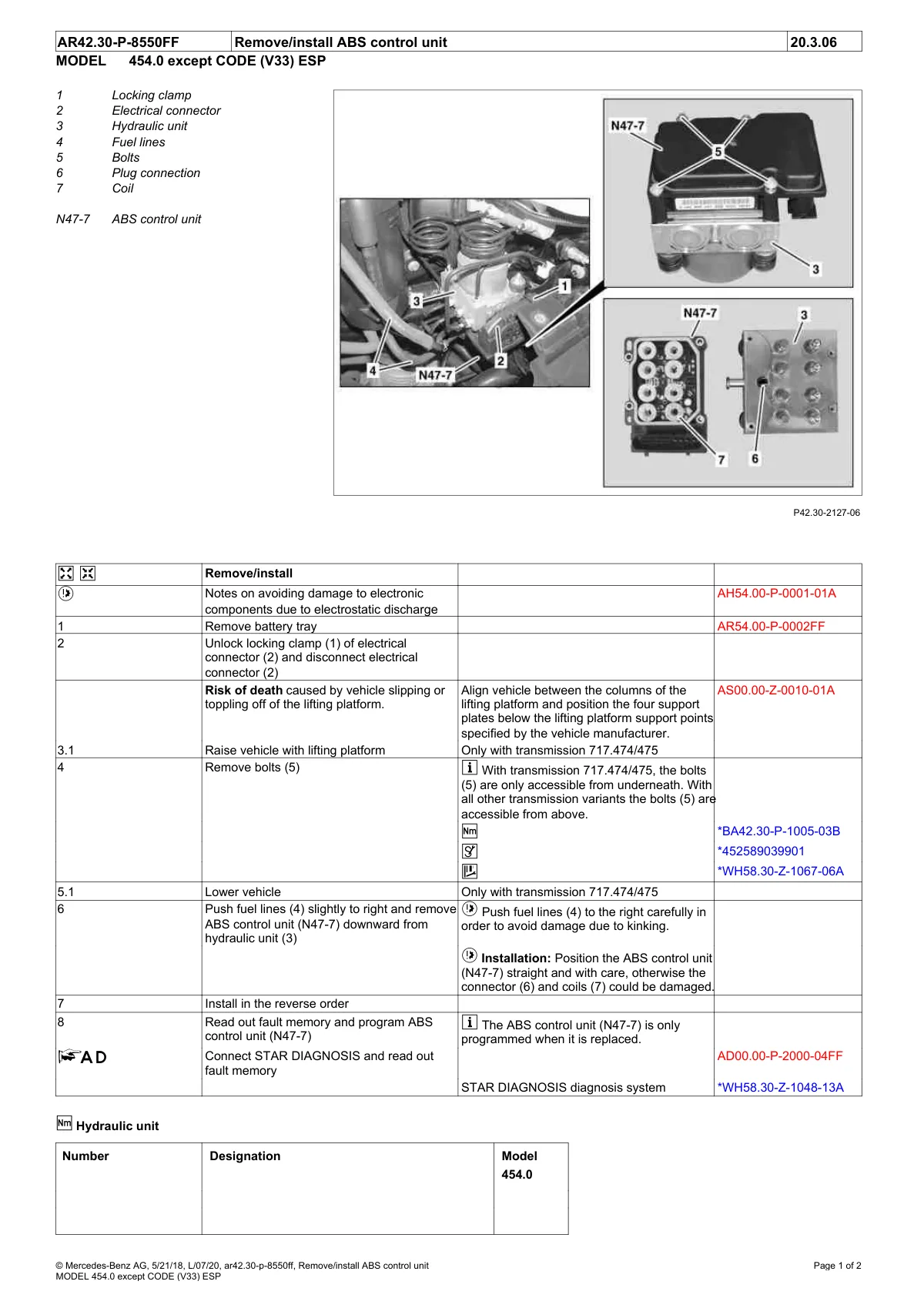

Remove/install ABS control unit N47-7 on smart fortwo 454 except CODE (V33) ESP with numbered callouts and component identification.

ABS control unit removal and installation diagram with numbered parts and connector details for smart 454.

View full-size image ↗

See all Chassis figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
