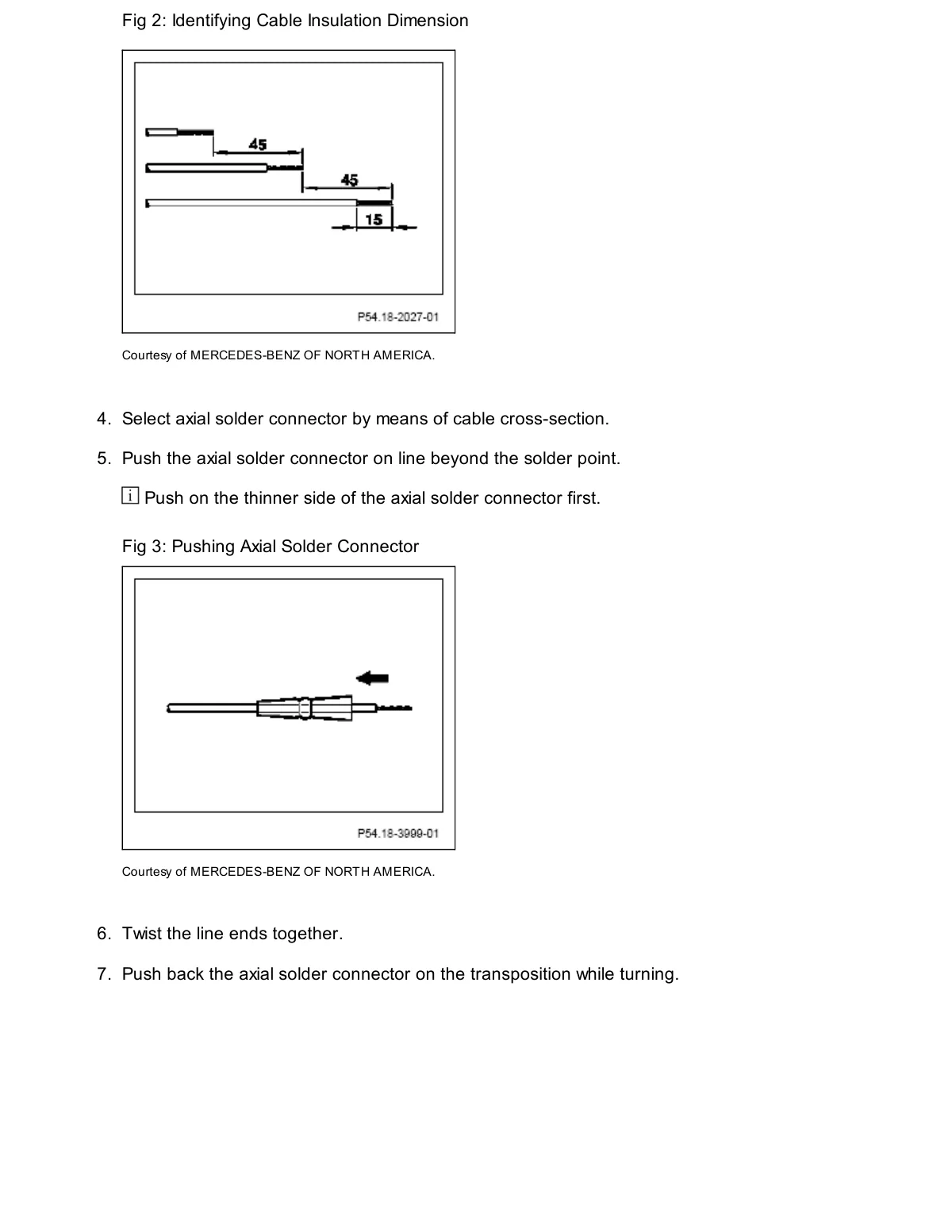

Cable insulation dimension identification and axial solder connector installation procedure for smart vehicles.

Technical diagram showing cable insulation measurements and solder connector pushing technique with directional arrow.
