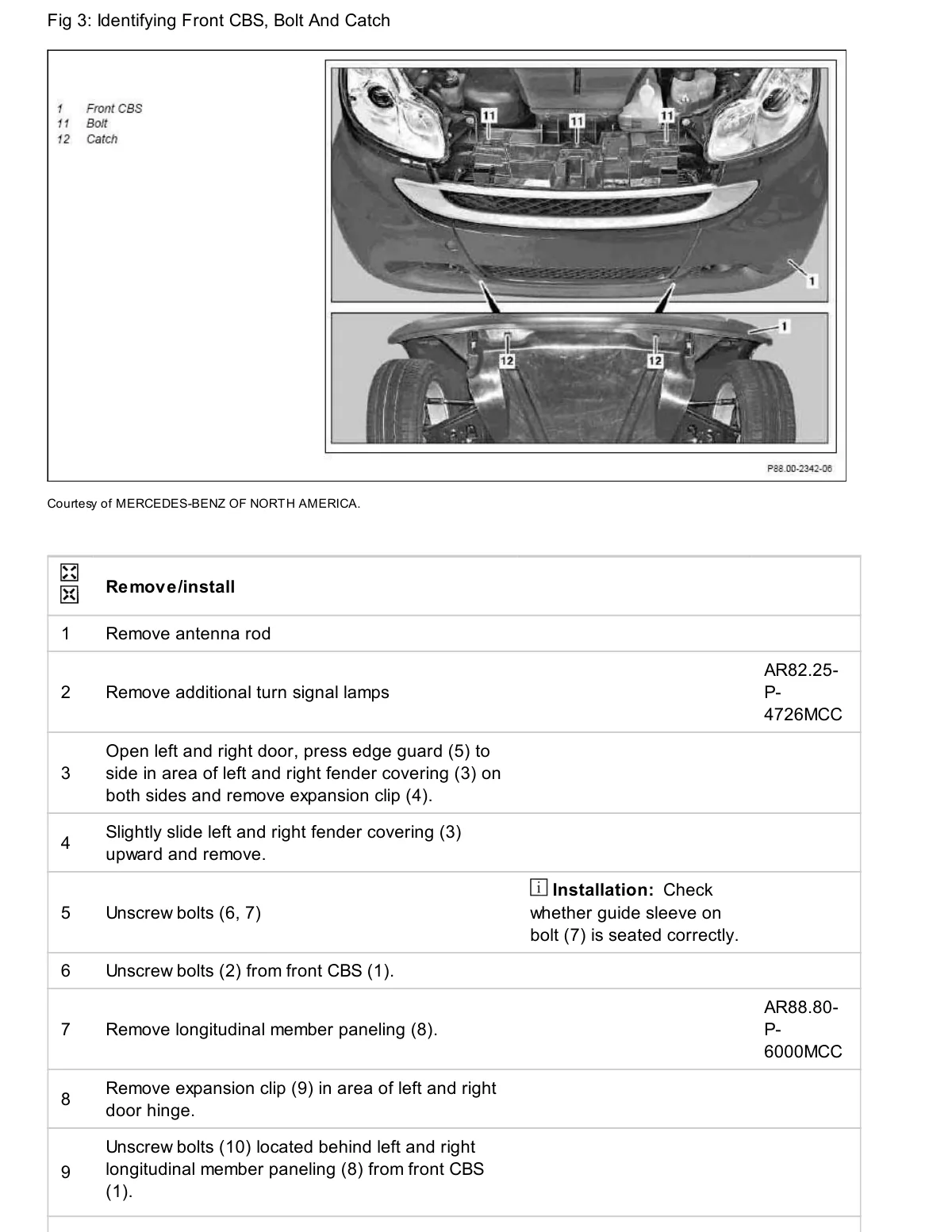

Front CBS bolt and catch identification diagram for Smart 450/451/452/454 vehicles with numbered callouts and removal procedure.

Front CBS assembly diagram showing bolt locations and catch points on Smart car chassis.
