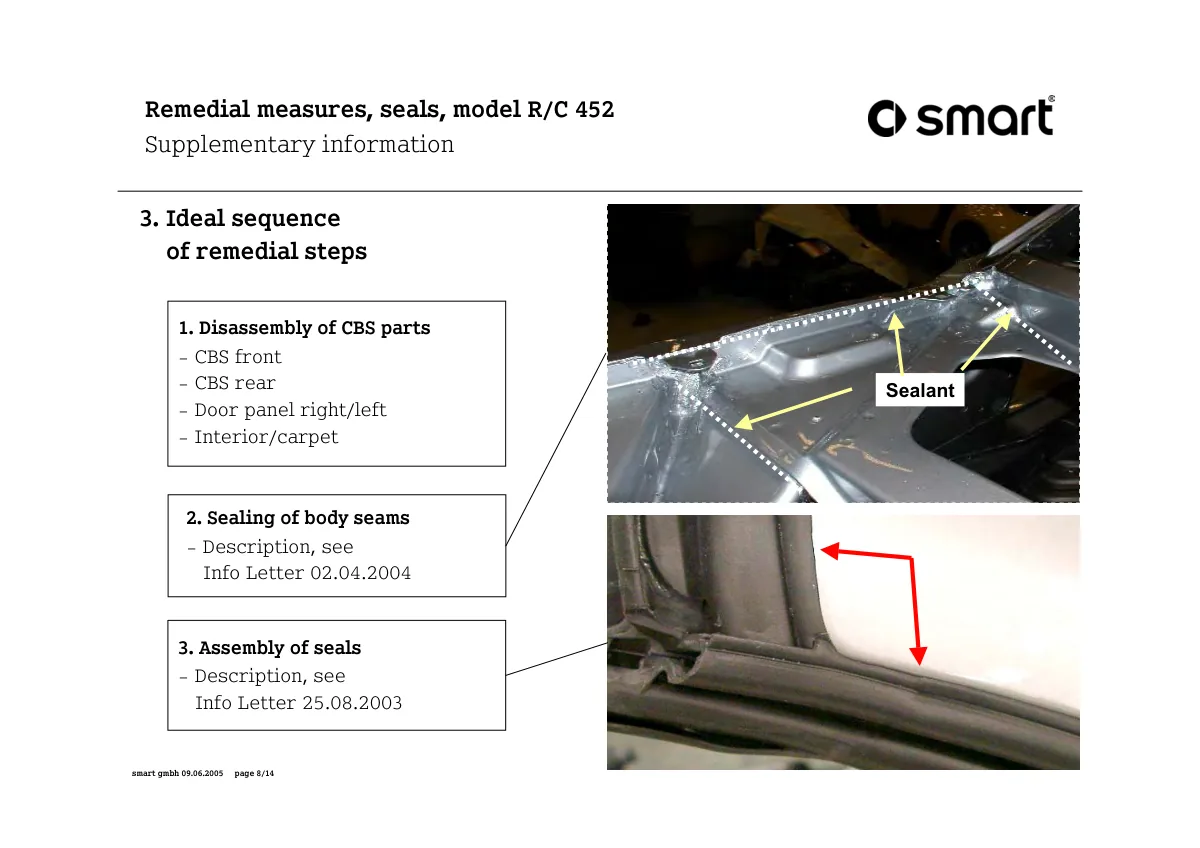

Ideal sequence of remedial steps for sealing body seams and assembling seals on smart Roadster 452 model.

Remedial measures procedure showing CBS disassembly, body seam sealing, and seal assembly with annotated photos.
