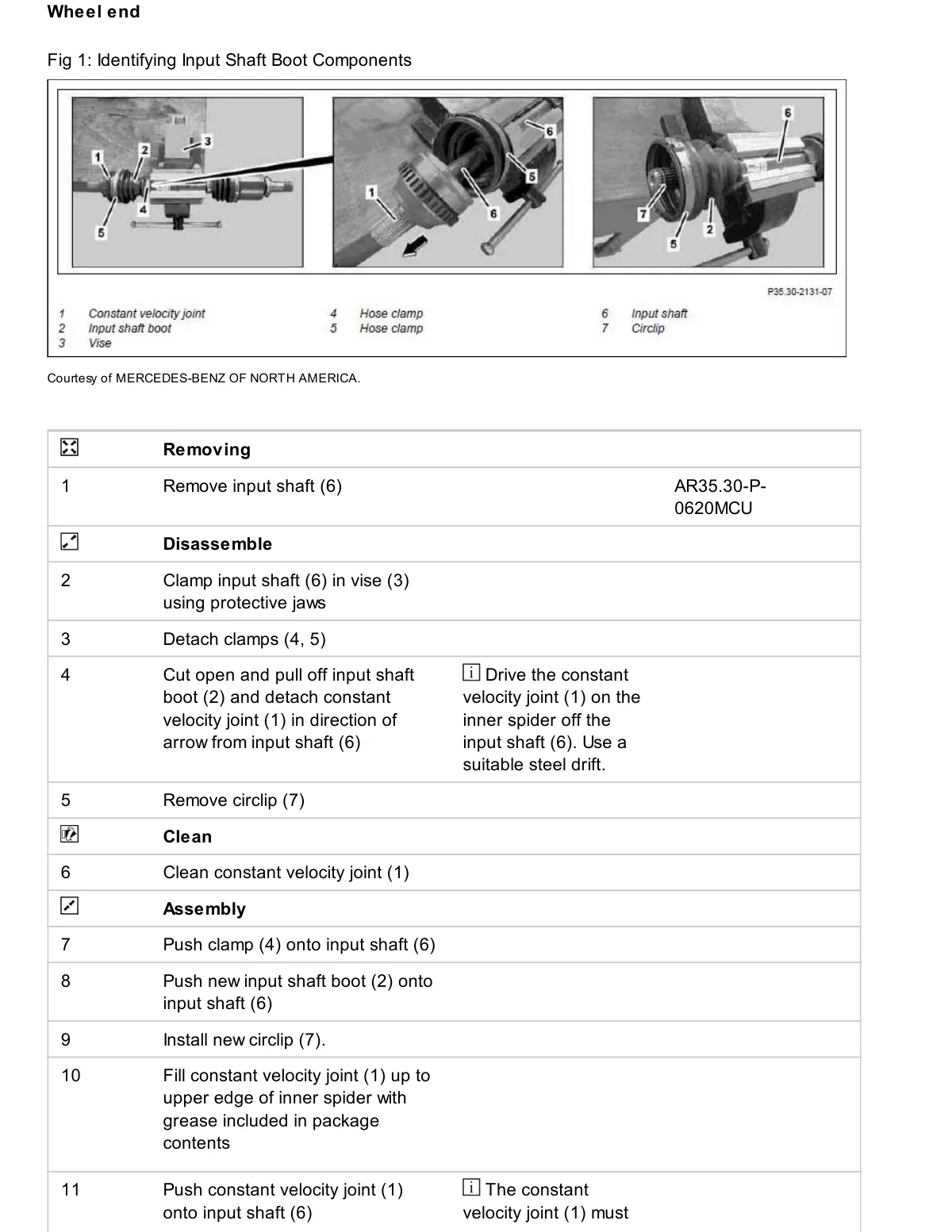

Input shaft boot components and disassembly procedure for Smart wheel end constant velocity joint removal.

Exploded view of CV joint boot parts with numbered callouts 1-7 and step-by-step removal instructions.

View full-size image ↗

See all Powertrain figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
