Lane Keeping Assist system overview with Lane Departure Warning and Prevention subsystems explanations and diagrams.

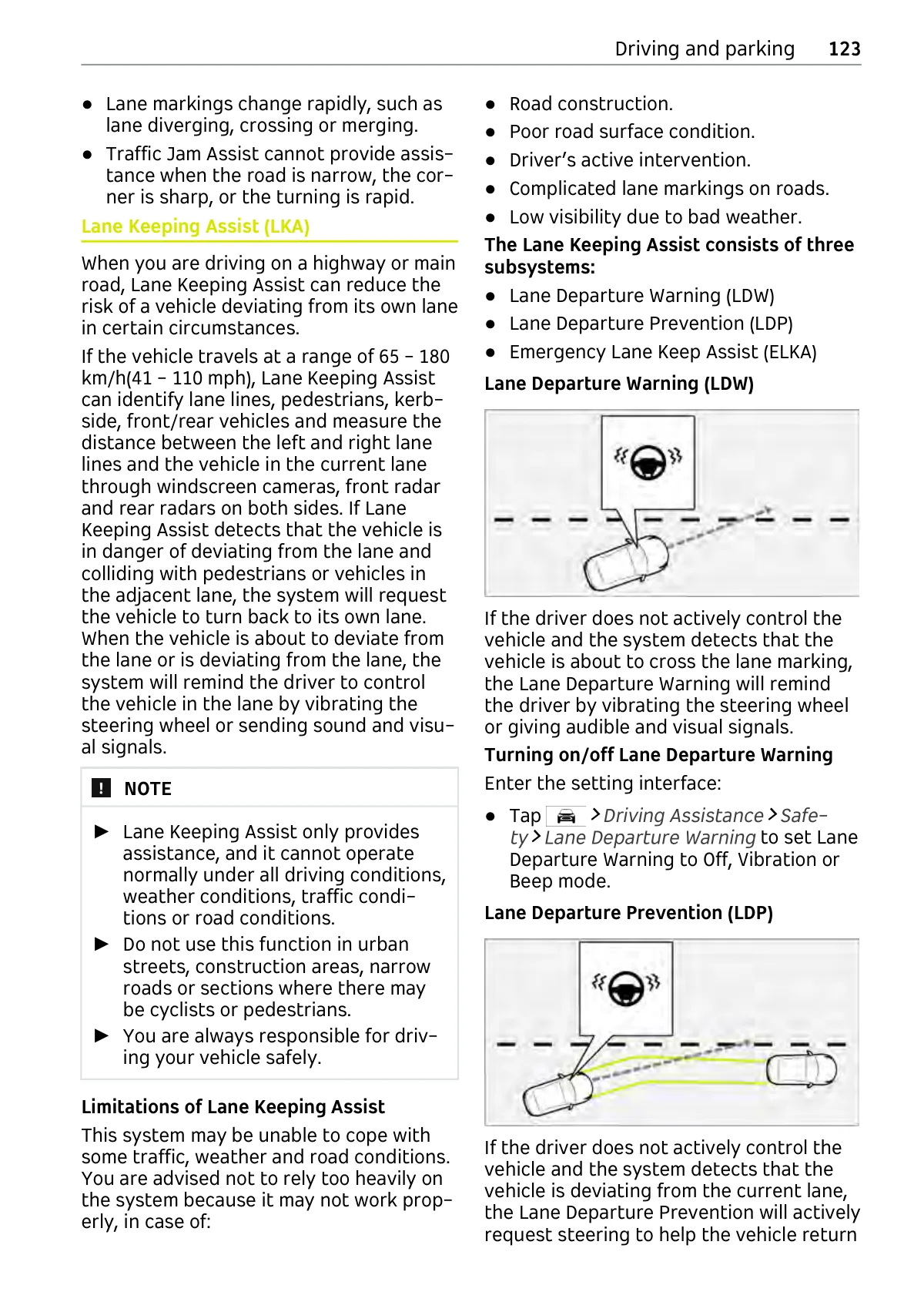

Text page describing LKA, LDW, and LDP features with two steering wheel diagrams showing lane departure scenarios.
