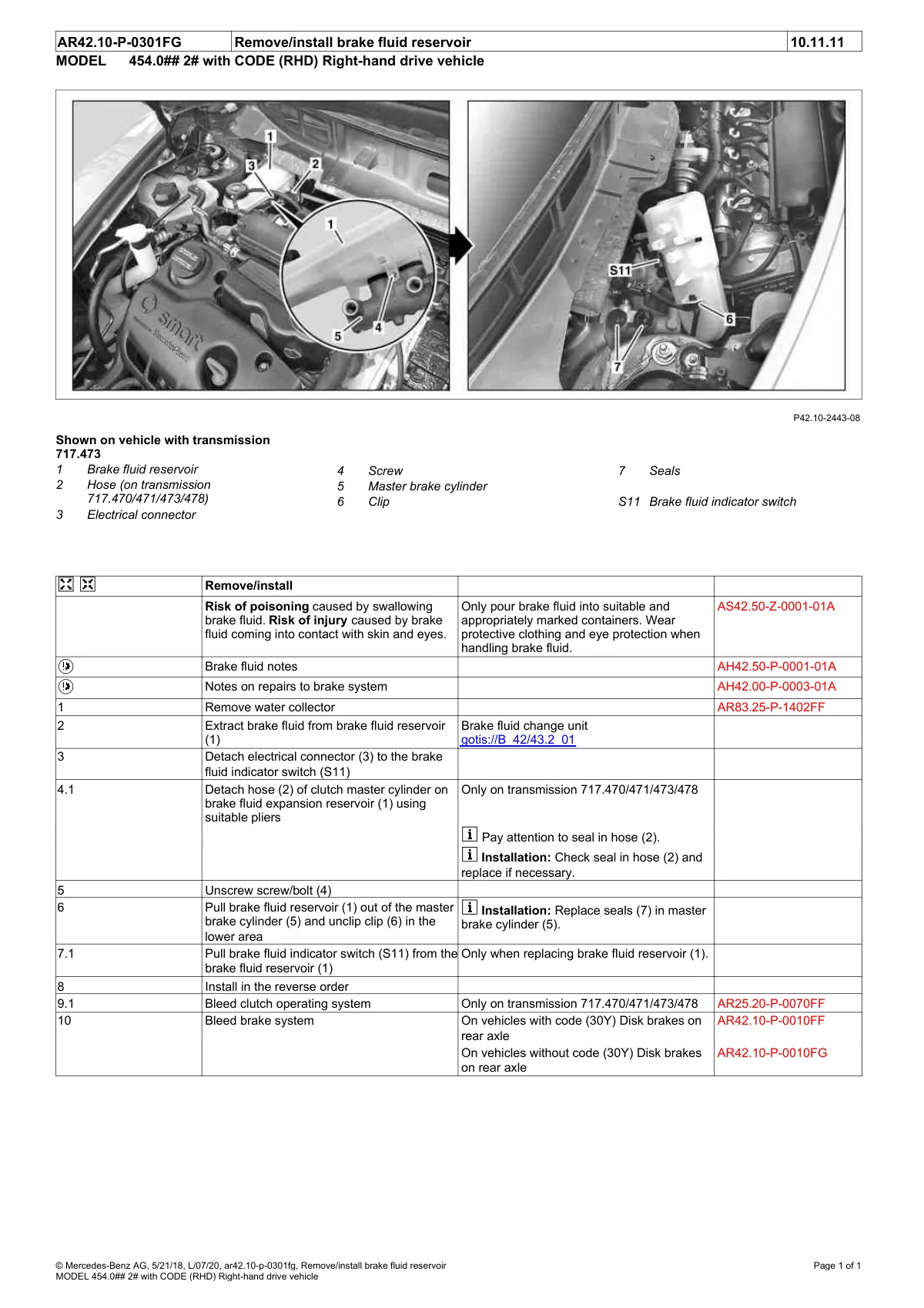

Smart 454 brake fluid reservoir removal and installation locations, engine bay and transmission area views with numbered callouts.

Two black and white photos showing brake fluid reservoir location and related components on Smart 454 with labeled callouts.

View full-size image ↗

See all Chassis figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
