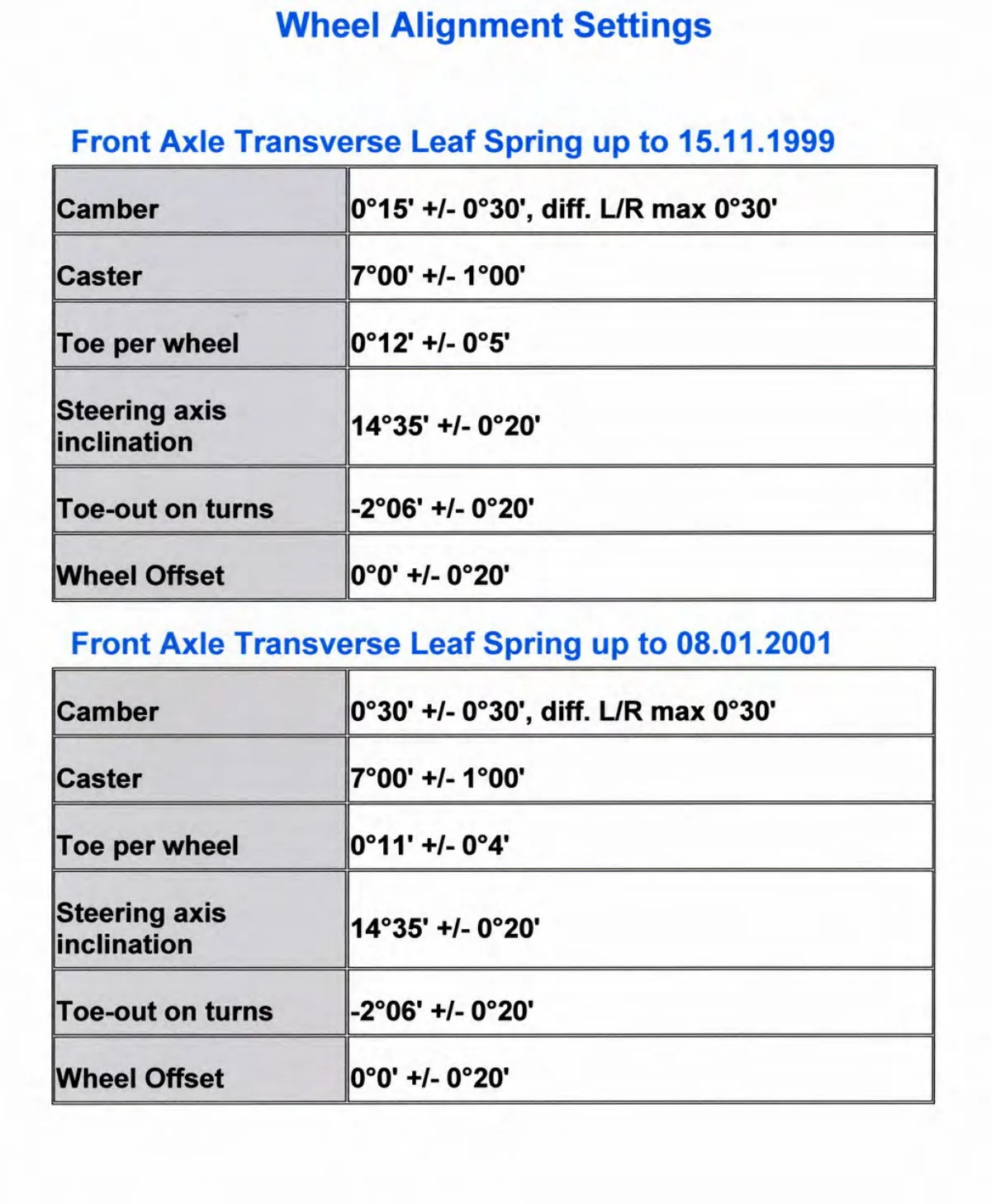

Front axle wheel alignment specifications for transverse leaf spring suspensions, two production periods with camber, caster, toe, and steering axis settings.

Two tables showing wheel alignment specifications for Smart fortwo front axle with measurements for camber, caster, toe, steering axis inclination, toe-out, and wheel offset.
