Technical data for windscreen washer fluid, air conditioning refrigerant specifications, and refrigerant filling volumes by model type.

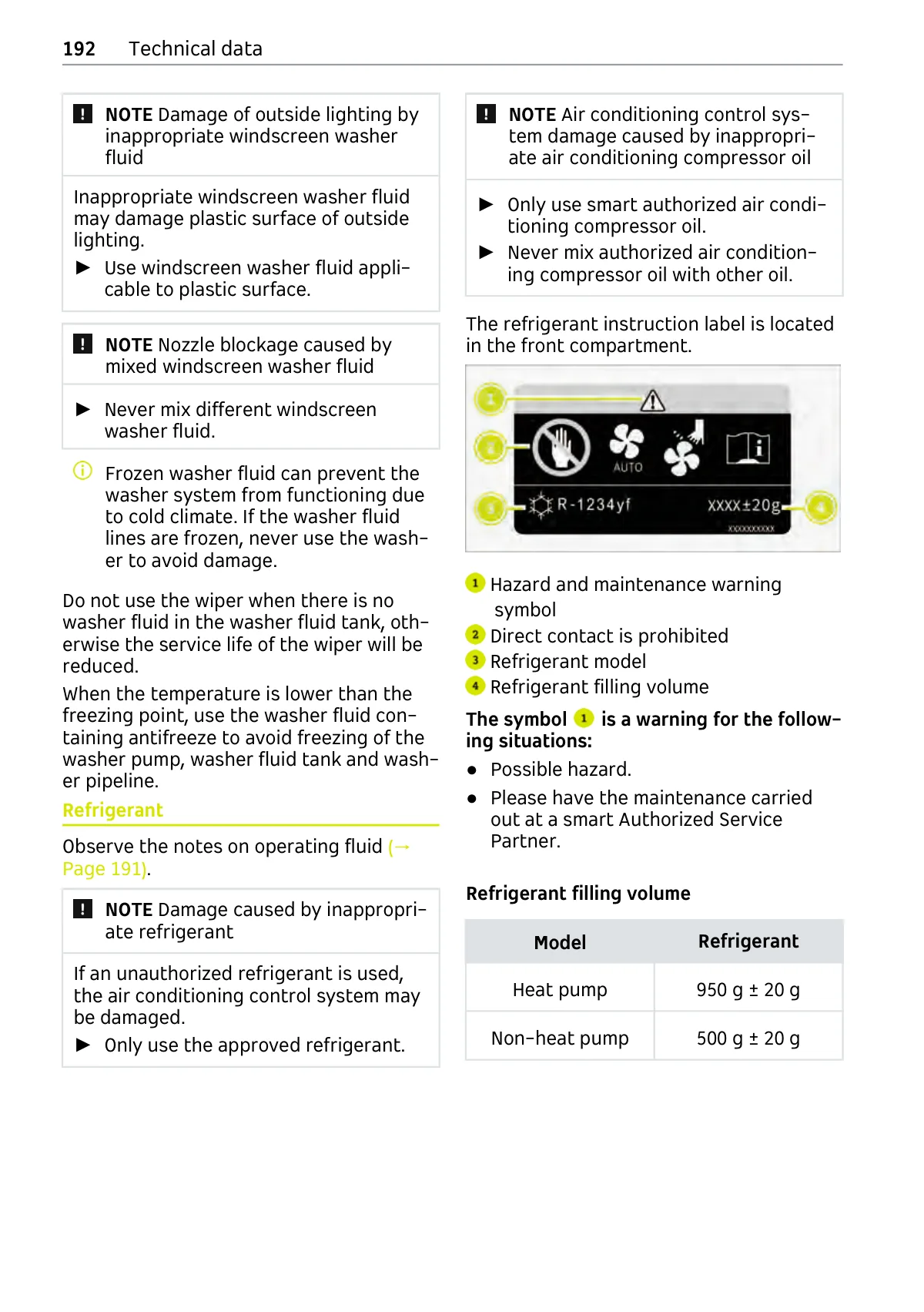

Page 192 technical data covering washer fluid warnings, AC refrigerant notes, and a refrigerant label diagram with filling volume table.
