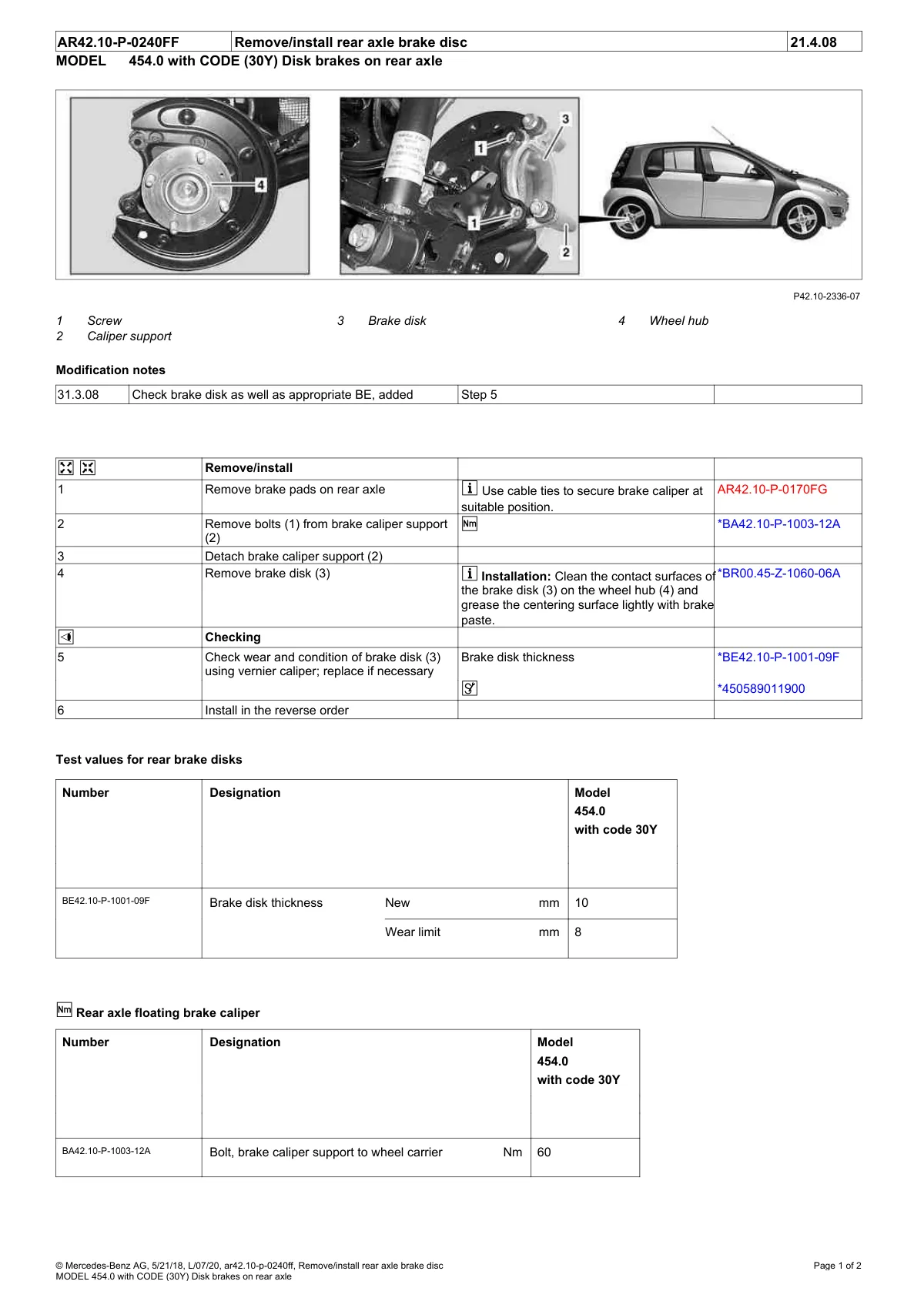

Remove/install rear axle brake disc on Smart Forfour 454 with CODE 30Y disk brakes; shows screw, caliper support, brake disk, and wheel hub locations.

Rear brake disc removal procedure diagram for Smart Forfour 454 with callouts and specifications.
