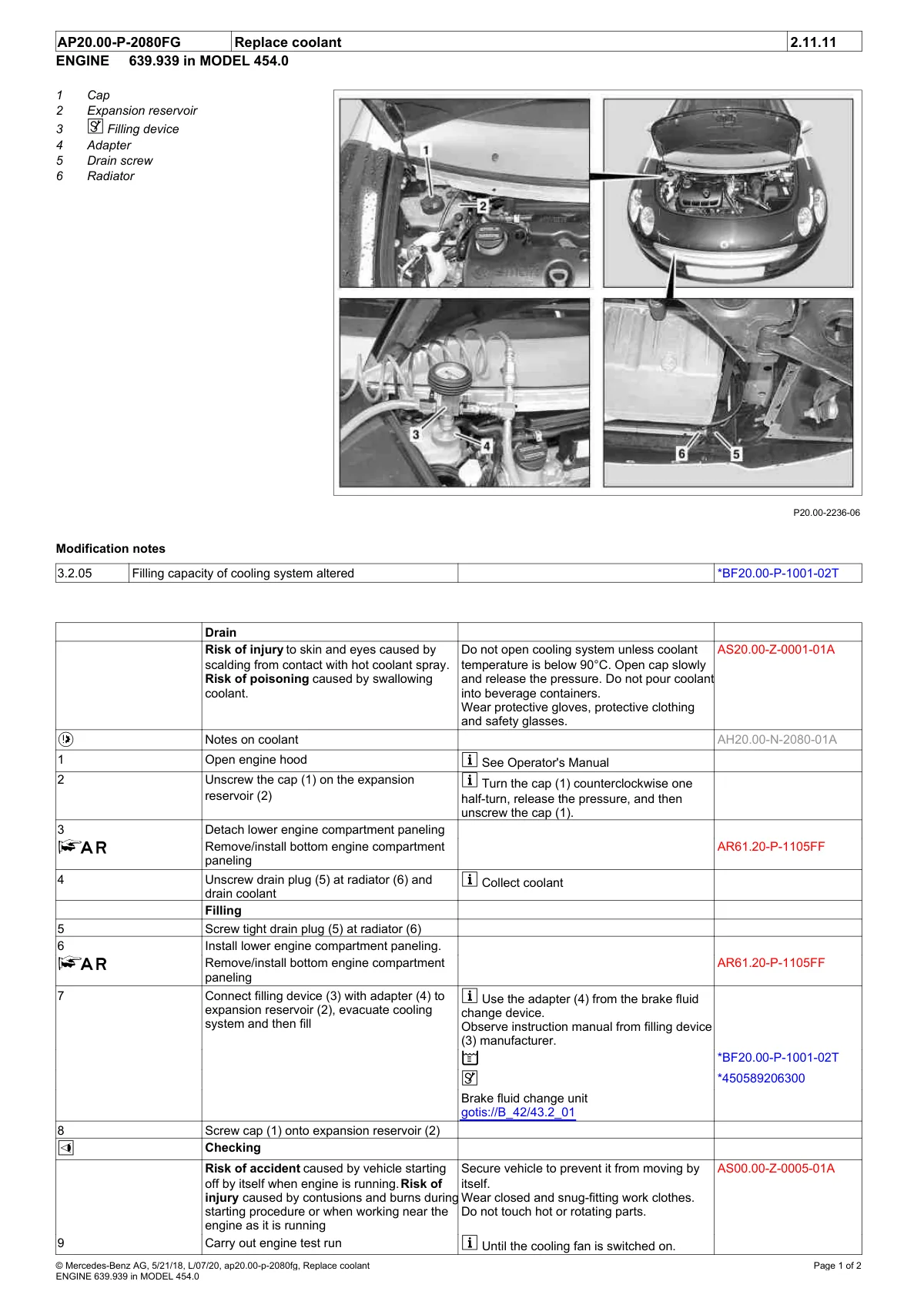

Coolant replacement procedure for 454.0 engine showing expansion reservoir, drain plug, radiator, and filling points.

Engine bay diagram with numbered callouts for coolant system components on Smart Fortwo 454.
