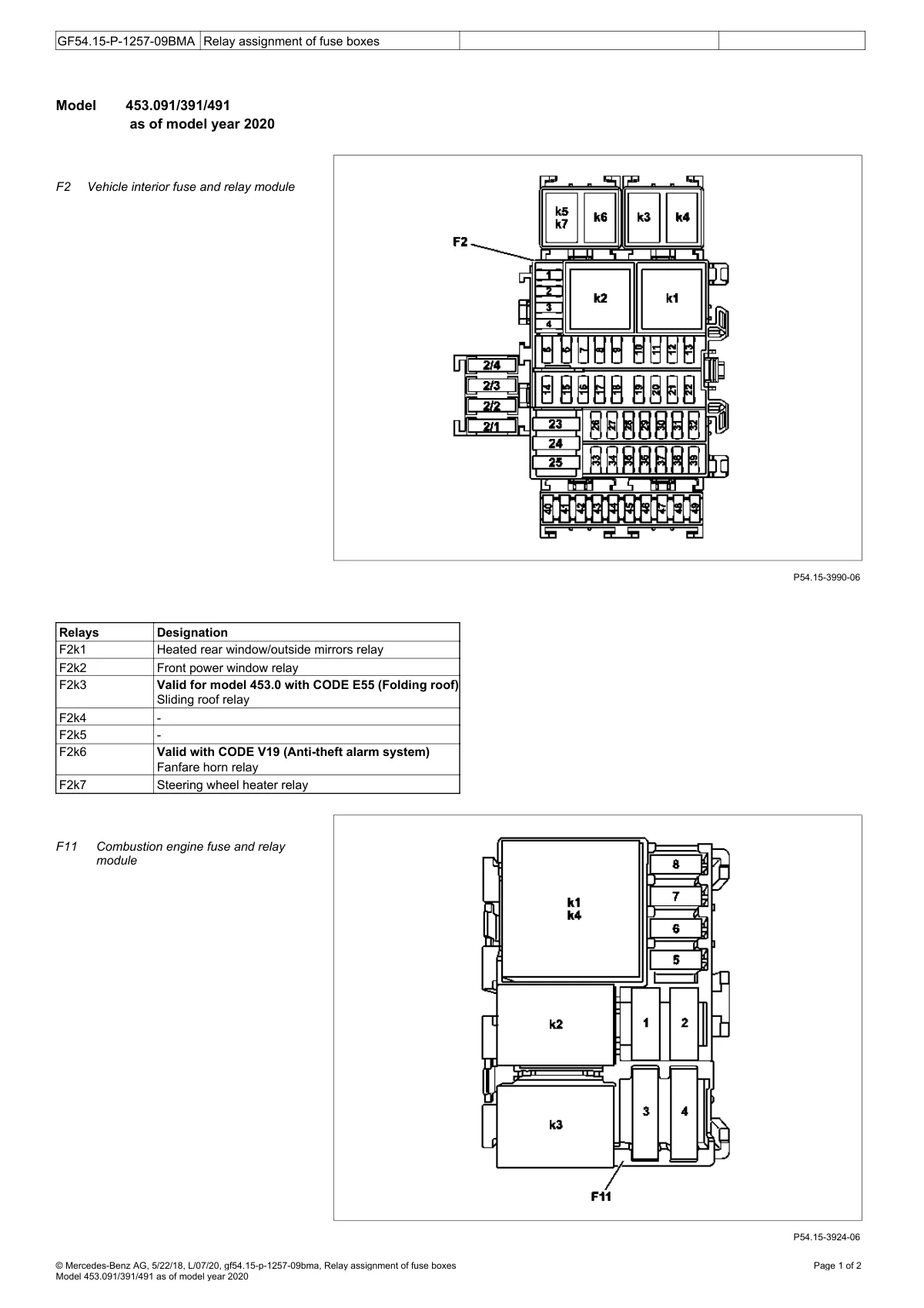

Vehicle interior fuse and relay module F2 with relay assignments for Smart Fortwo 453 model year 2020.

Fuse box diagram showing F2 interior module layout with labeled relay positions k1-k7 and fuse rows 2/1-2/5.

View full-size image ↗

See all Electrical figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
