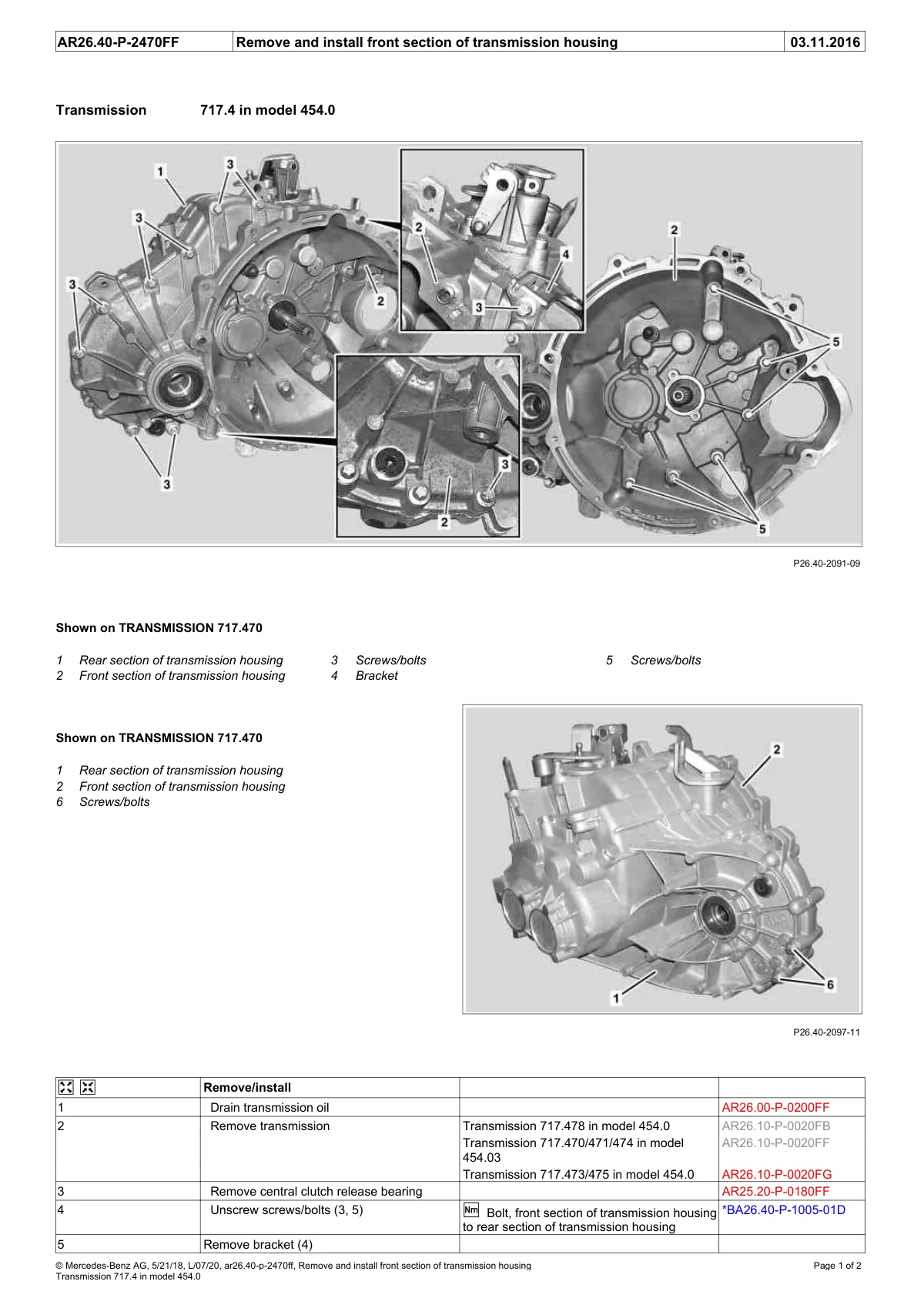

Remove and install front section of transmission housing 717.4 in model 454.0 with exploded views and callout details.

Transmission housing assembly diagram with numbered callouts for rear section, front section, screws, bolts and bracket.
