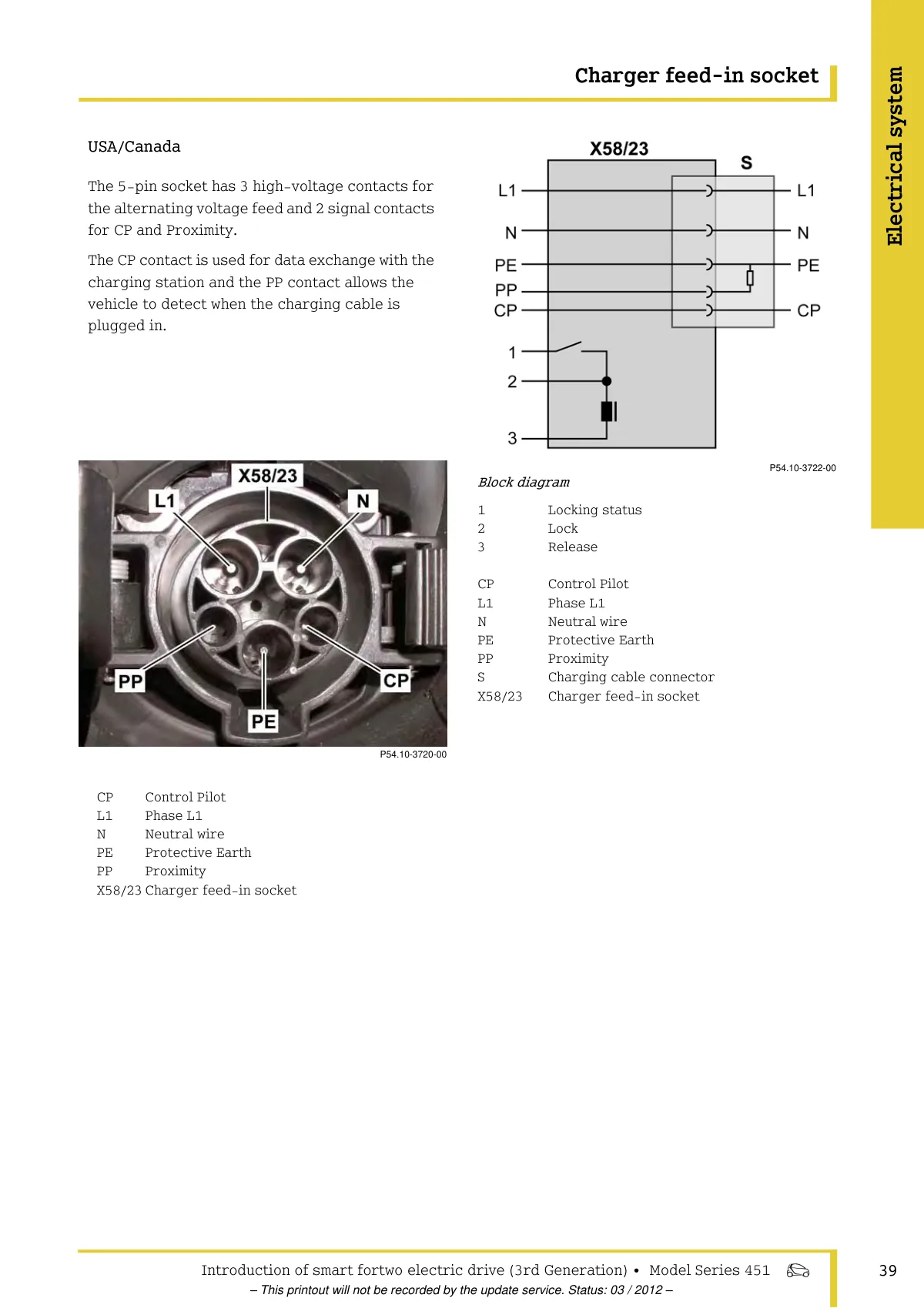

X58/23 charger feed-in socket schematic with 5-pin connector contacts for AC voltage and signal lines, USA/Canada model.

Charger socket diagram showing pin layout, photo, and block diagram with contact assignments.
