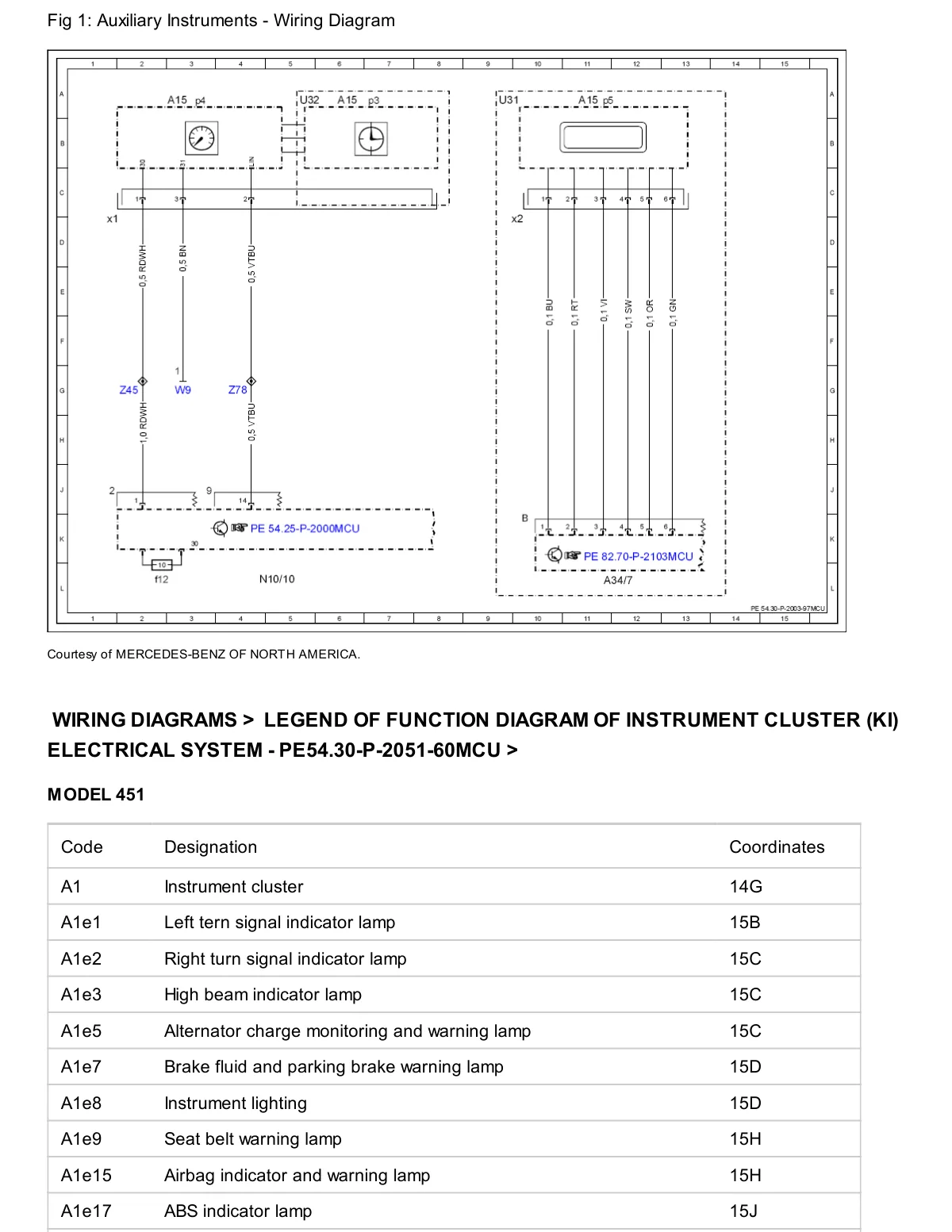

Auxiliary instruments wiring diagram for chassis 451 instrument cluster electrical system PE54.30-P-2051-60MCU.

Wiring diagram showing instrument cluster connections, gauges, lamps, and control modules for Smart 451.
