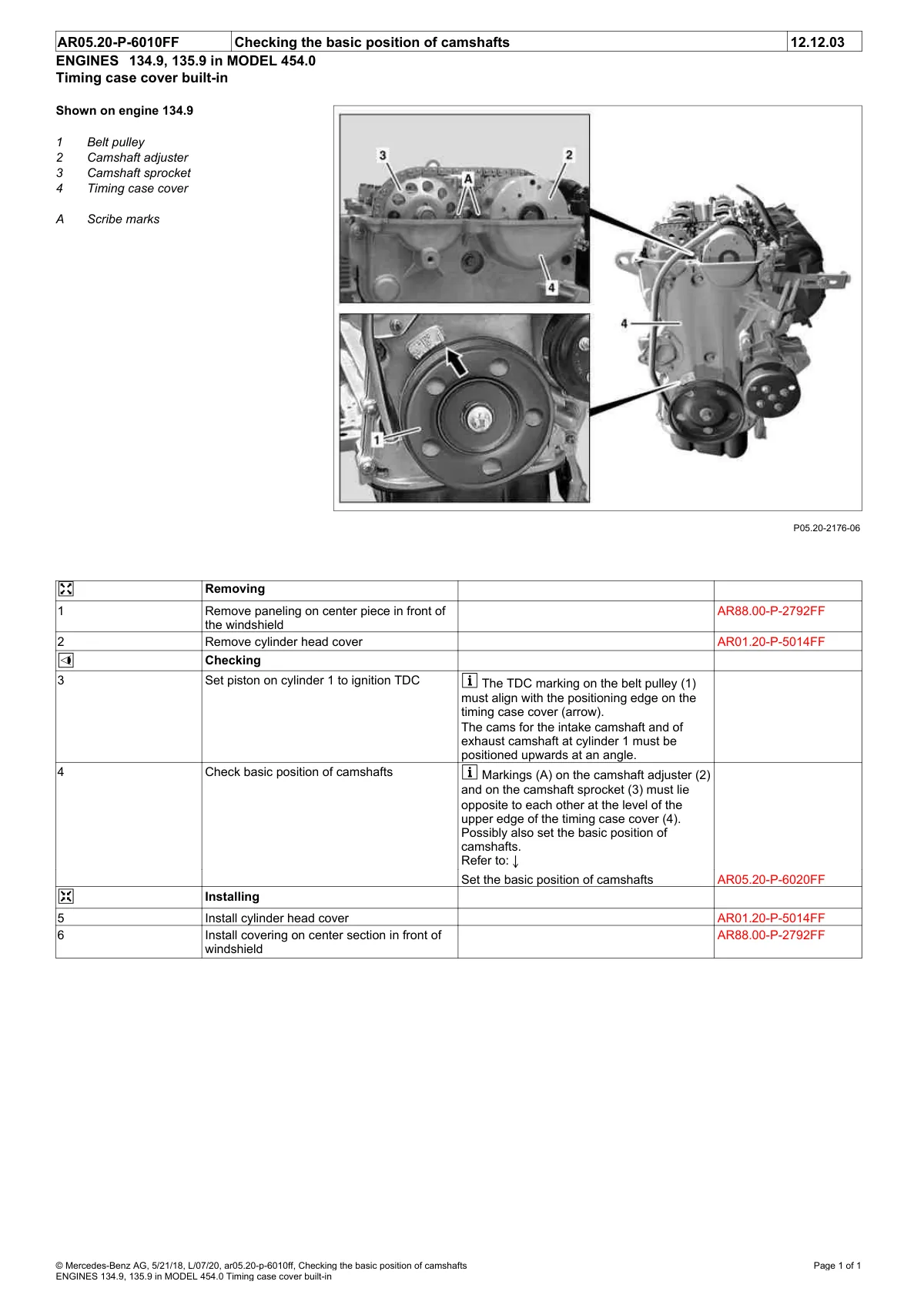

Checking basic camshaft position on engines 134.9, 135.9 in model 454.0 with timing case cover built-in.

Engine camshaft inspection diagram showing belt pulley, adjuster, sprocket, and timing case cover with numbered callouts.
