Remove/install injection lines of common rail direct injection, 639.9 engine in model 454.0 Smart Fortwo.

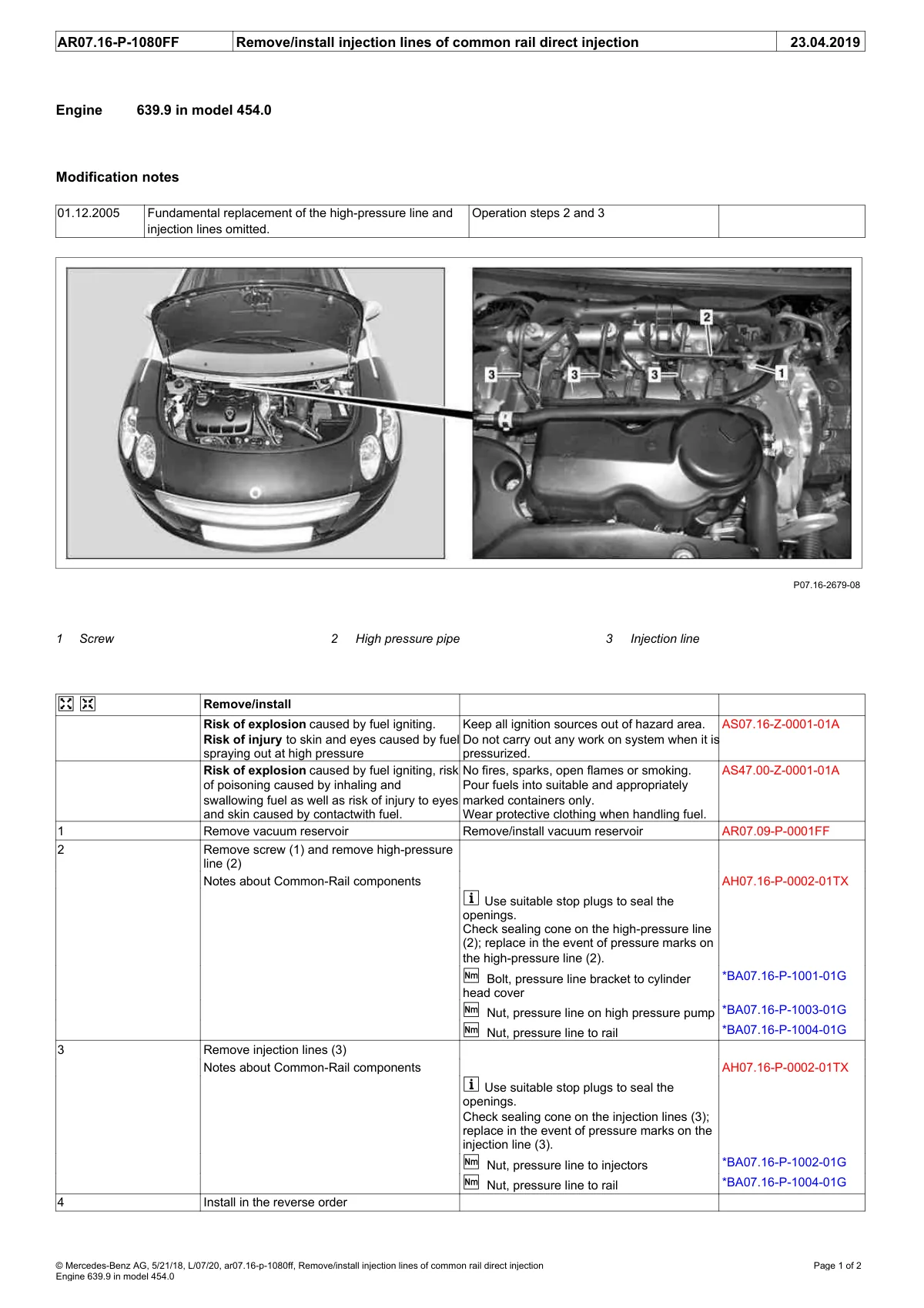

Engine bay diagram showing high-pressure pipe, injection lines, and screw locations for fuel system service.
