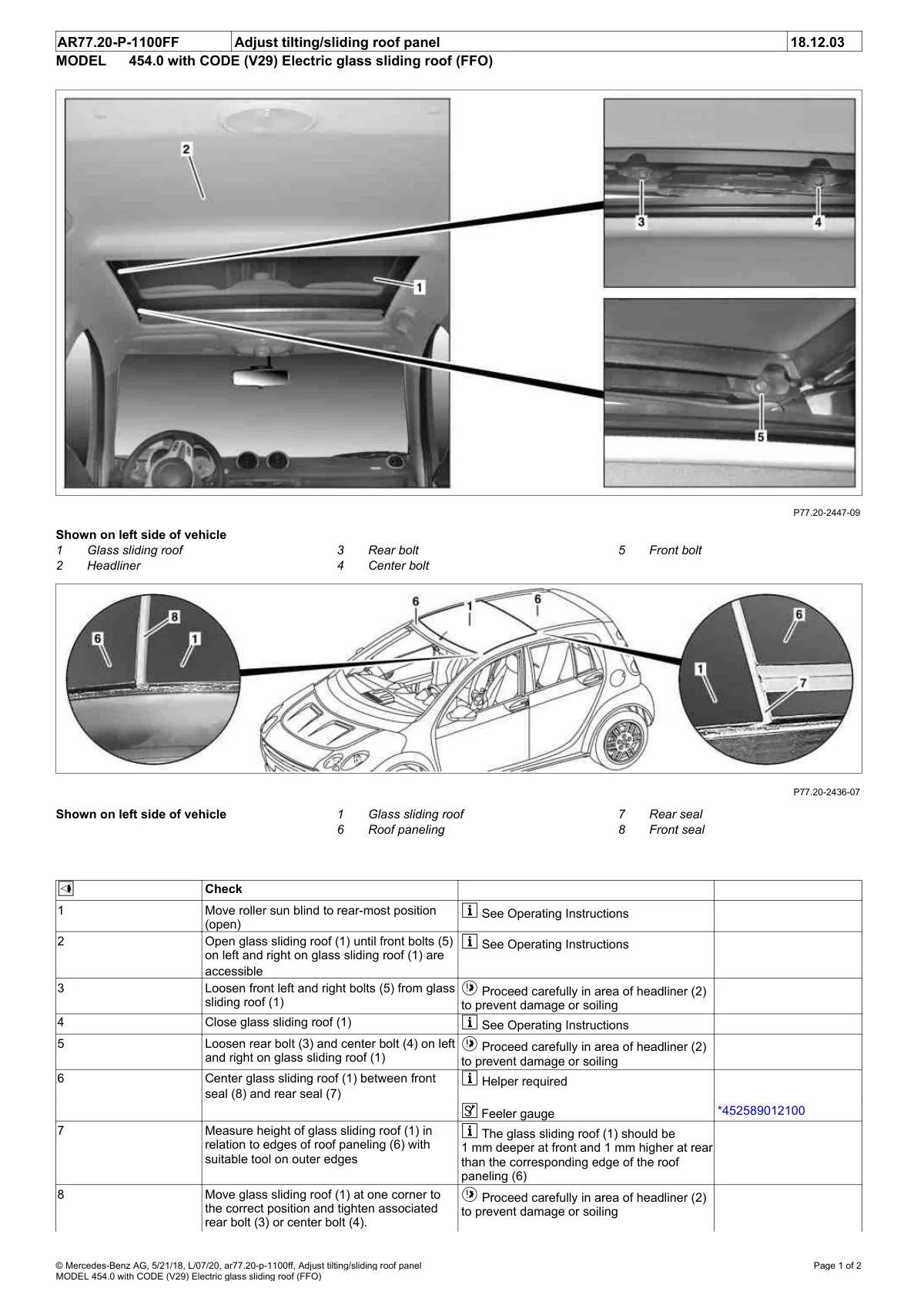

Adjust tilting/sliding roof panel 454.0 with electric glass sliding roof (FFO) — front and rear bolt positions with headliner callouts.

Smart 454 electric glass sliding roof adjustment procedure showing bolt locations and headliner area on left and right sides.
