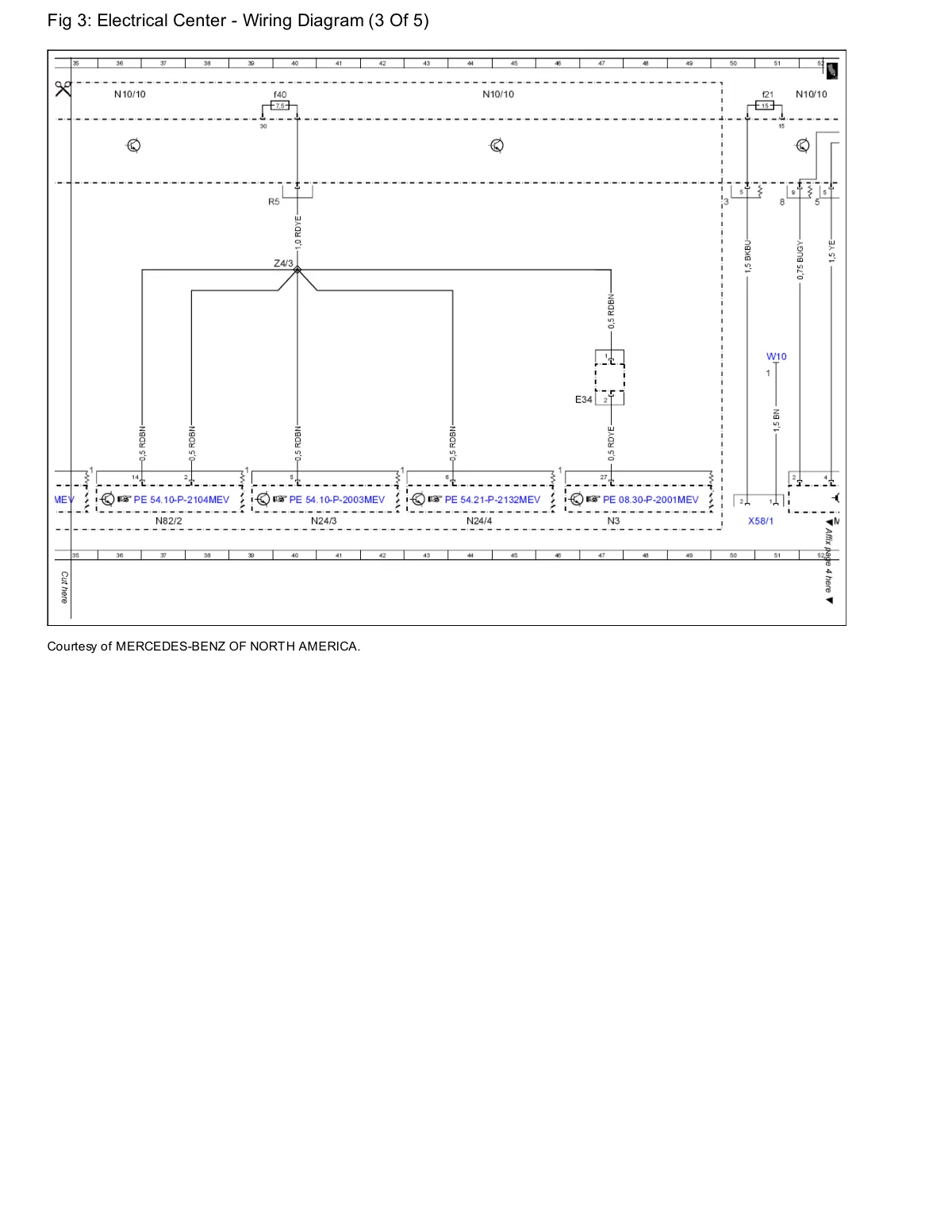

Electrical Center wiring diagram page 3 of 5 showing N10/10 power distribution, fuses N82/2 through N82/4, relay Z43, and sensor E34 circuits.

Wiring diagram with fuse blocks, relays, connectors, and circuit routing for smart electrical center distribution.
