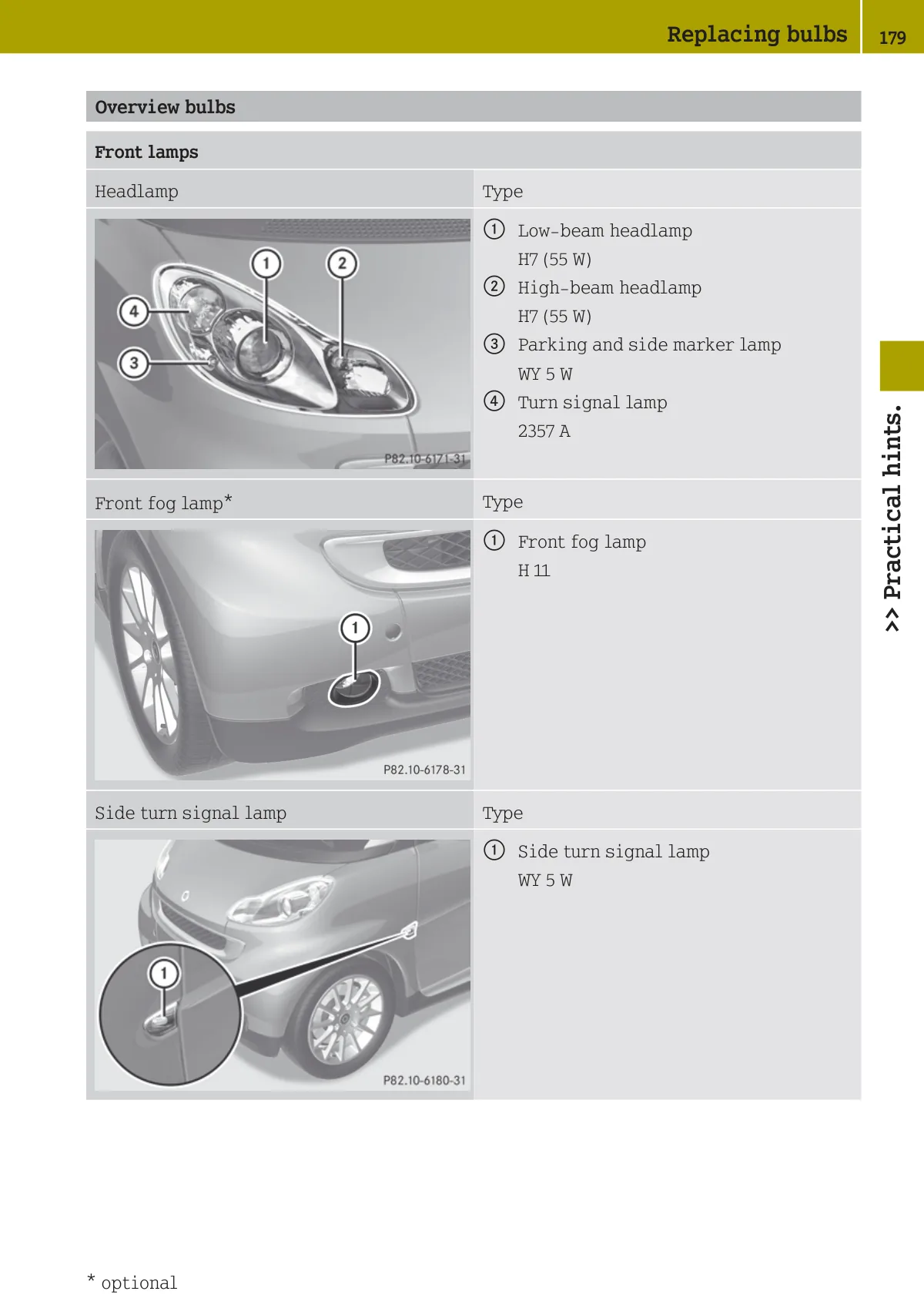

Front and side lighting bulb locations and specifications for Smart Fortwo headlamps, fog lamps, and turn signals.

Technical diagram showing headlamp, fog lamp, and side turn signal bulb types and wattages with numbered callouts.
