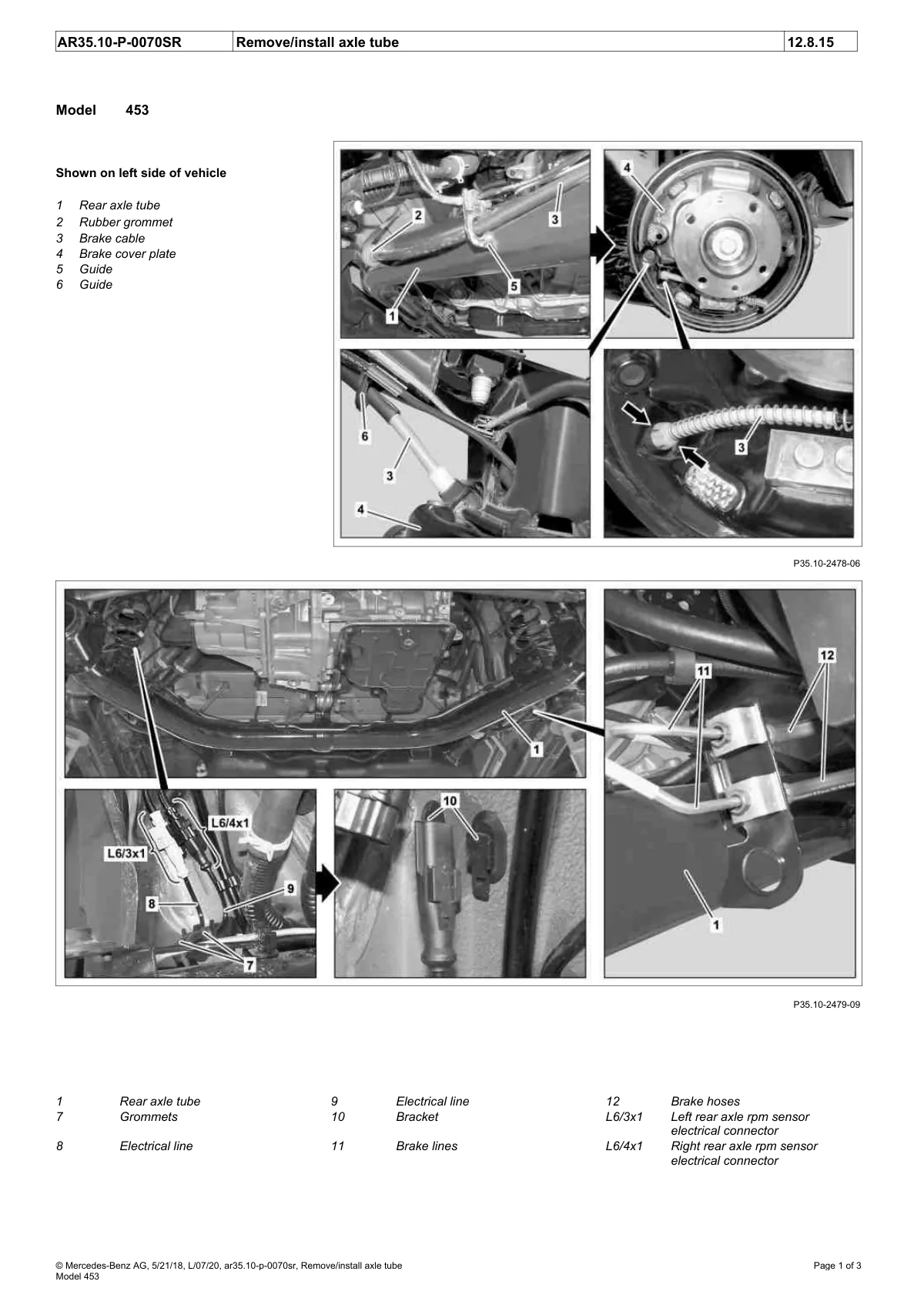

Model 453 rear axle tube removal and installation procedure with numbered callouts identifying components.

Exploded view diagrams of rear axle tube assembly with 12 labeled parts and multiple angles.

View full-size image ↗

See all Powertrain figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
