Centre display overview and operation notes with dashboard switch locations and functions.

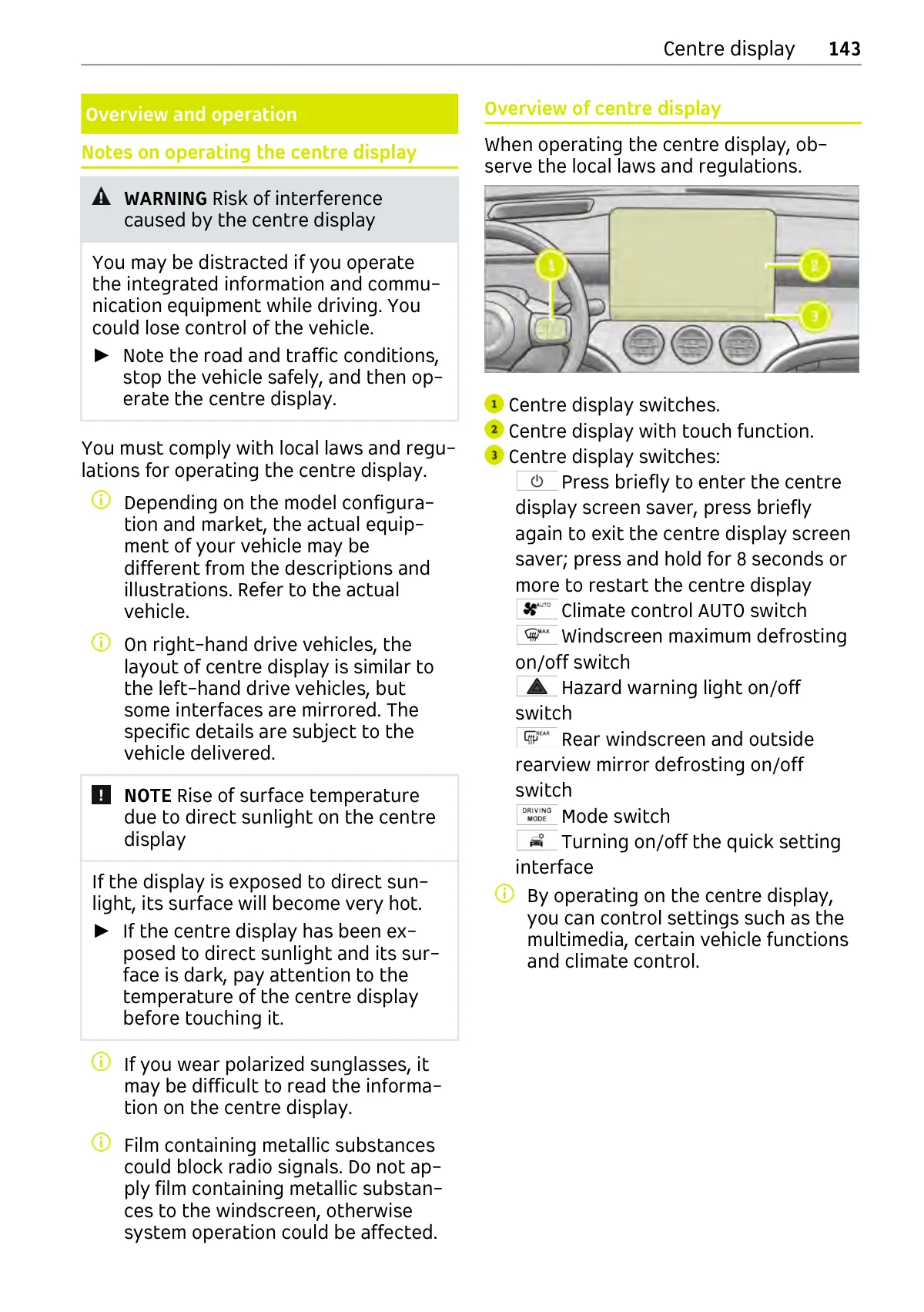

Dashboard diagram showing centre display switches and touch screen with operating instructions.
