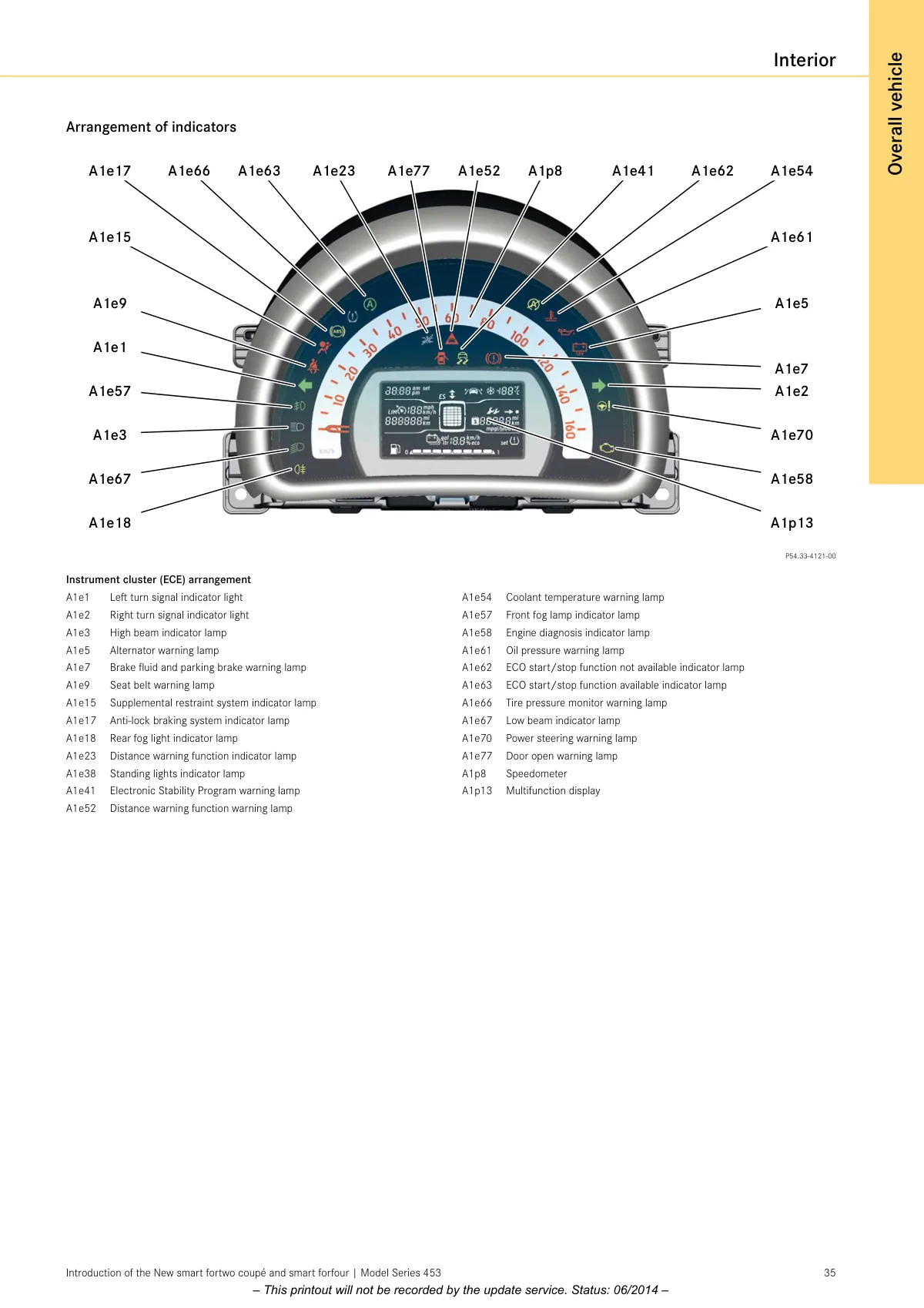

Instrument cluster (ECE) arrangement with labeled indicator positions and warning lamp callouts, smart fortwo/forfour 453.

Instrument cluster diagram showing speedometer, fuel gauge, and 24 labeled warning indicator positions around the gauge cluster face.

View full-size image ↗

See all Electrical figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
