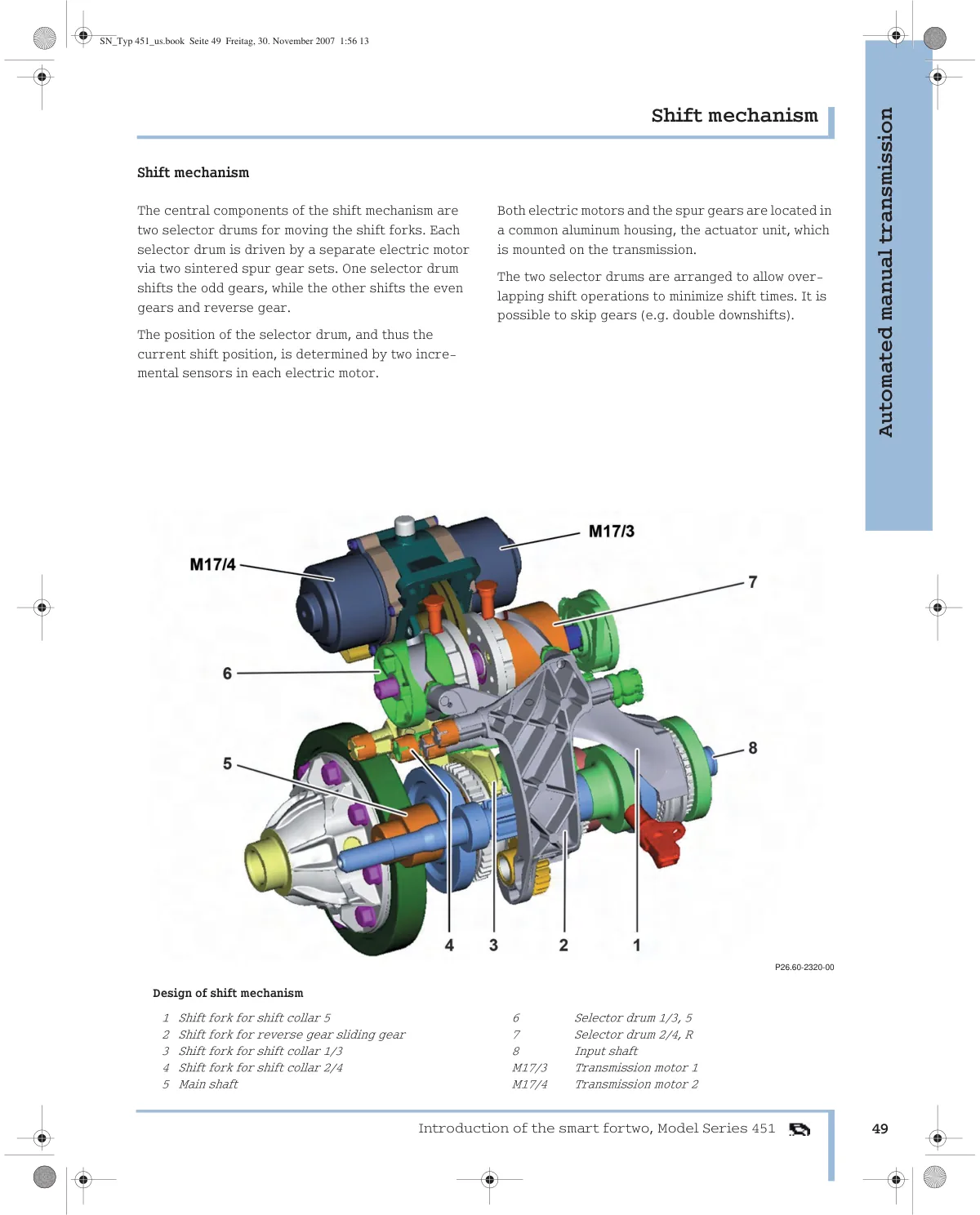

Shift mechanism design with selector drums, electric motors, and spur gears for Smart ForTwo 451 automated manual transmission.

Exploded diagram of shift mechanism showing motors M17/3 and M17/4, selector drums, shift forks, and input shaft.
