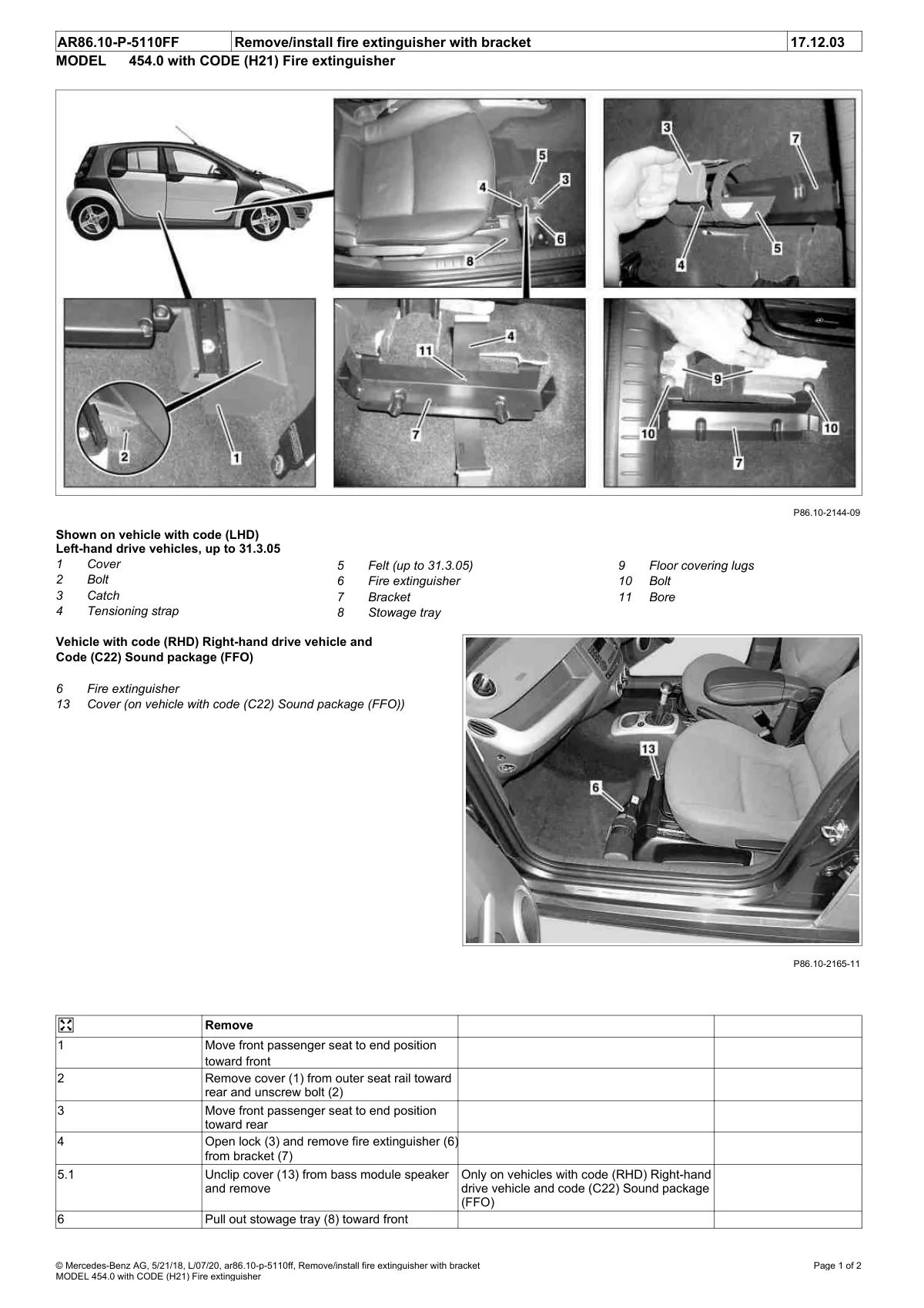

Fire extinguisher removal and installation procedure for Smart Fortwo 454 with H21 code, showing bracket location and mounting points.

Multi-view diagram showing fire extinguisher removal steps on Smart Fortwo 454, with numbered callouts indicating cover, bolt, catch, and bracket locations.

View full-size image ↗

See all Body & Interior figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
