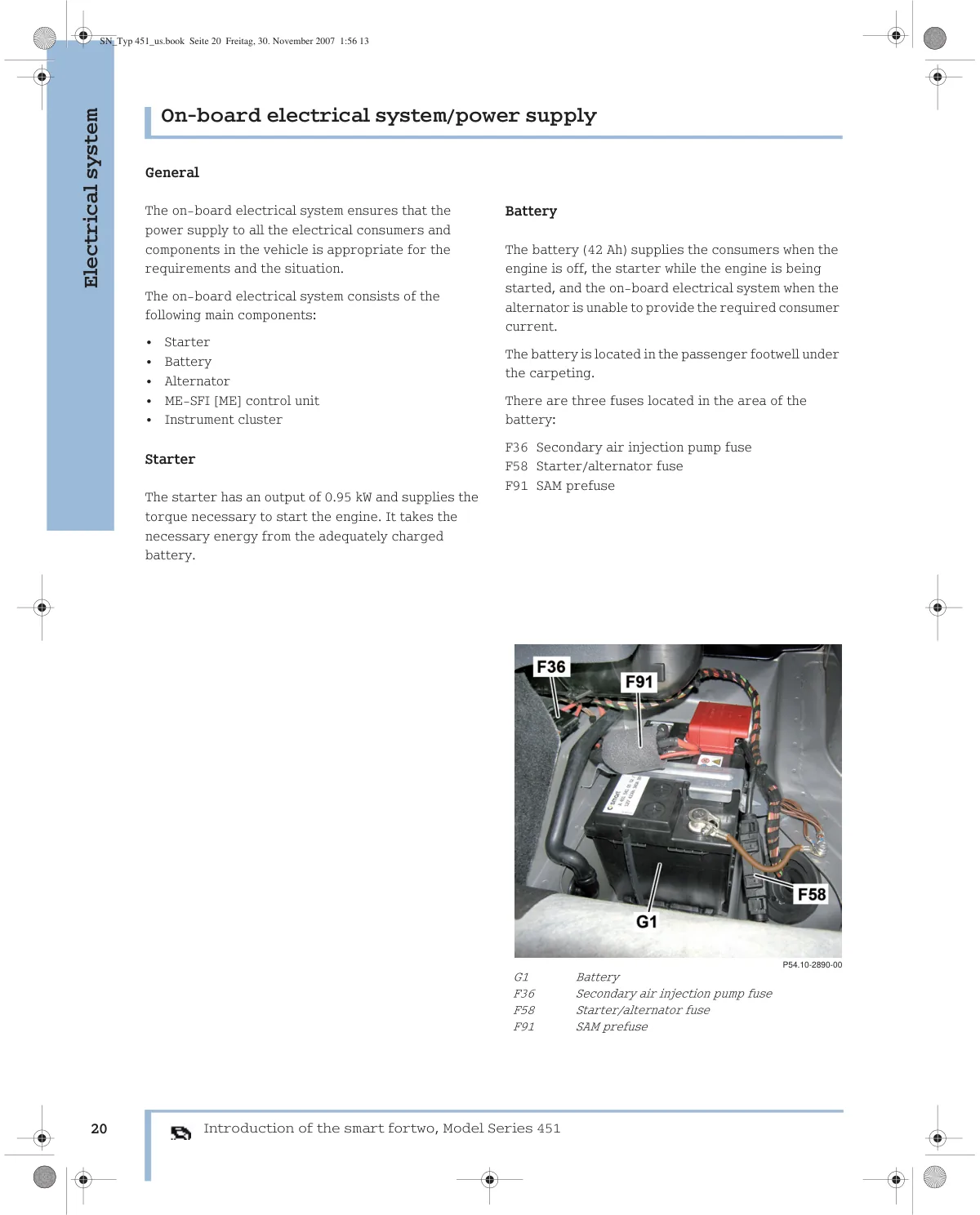

On-board electrical system components including battery, starter, alternator, fuses F36/F58/F91 located in passenger footwell area.

Battery and fuse box location diagram for smart fortwo 451 with labeled components
