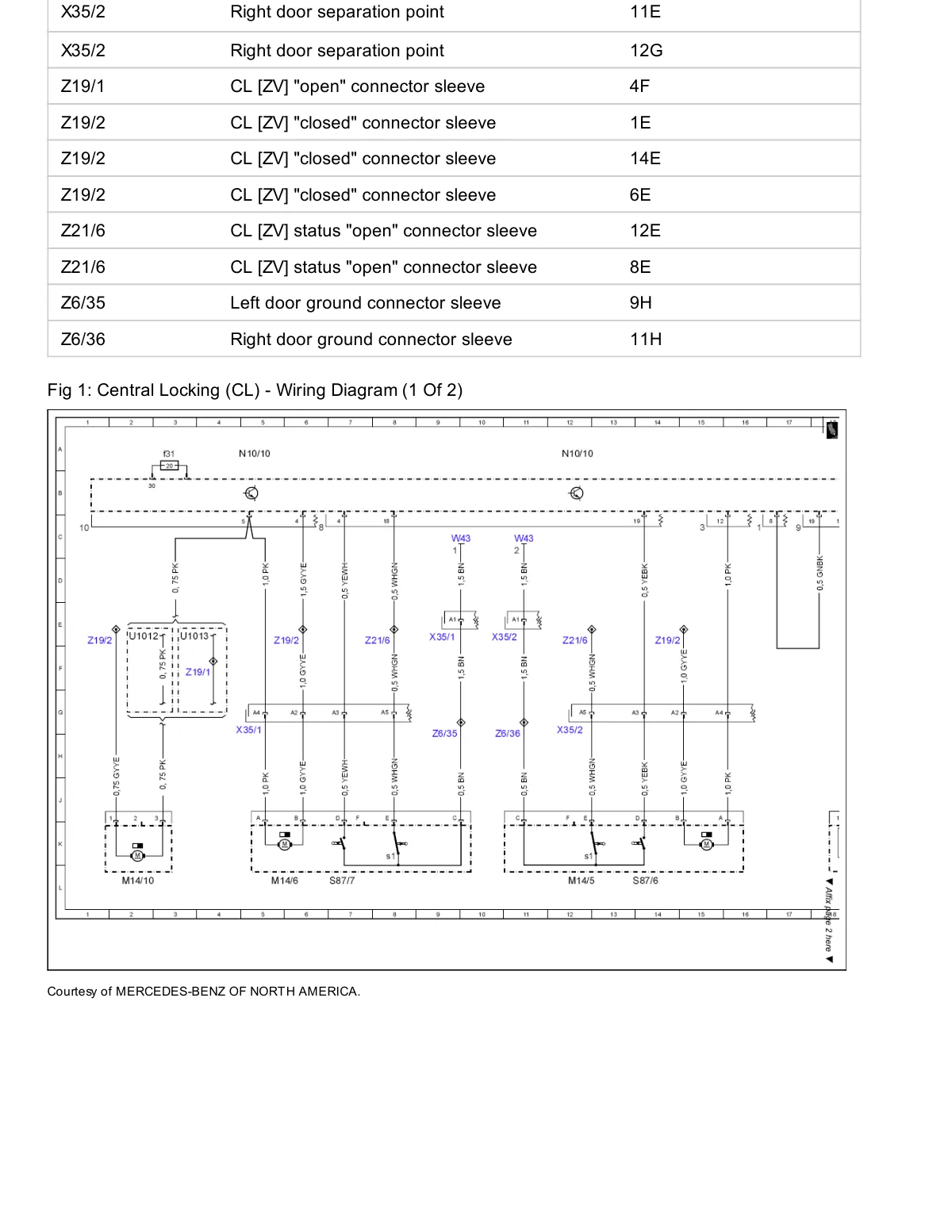

Central Locking (CL) wiring diagram part 1 of 2, showing door lock circuits, connectors, and control modules.

Wiring diagram for Smart central locking system with connector sleeves, door separation points, and ground connections labeled.

View full-size image ↗

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
